SPECIALIZED

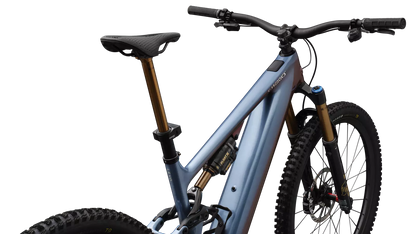

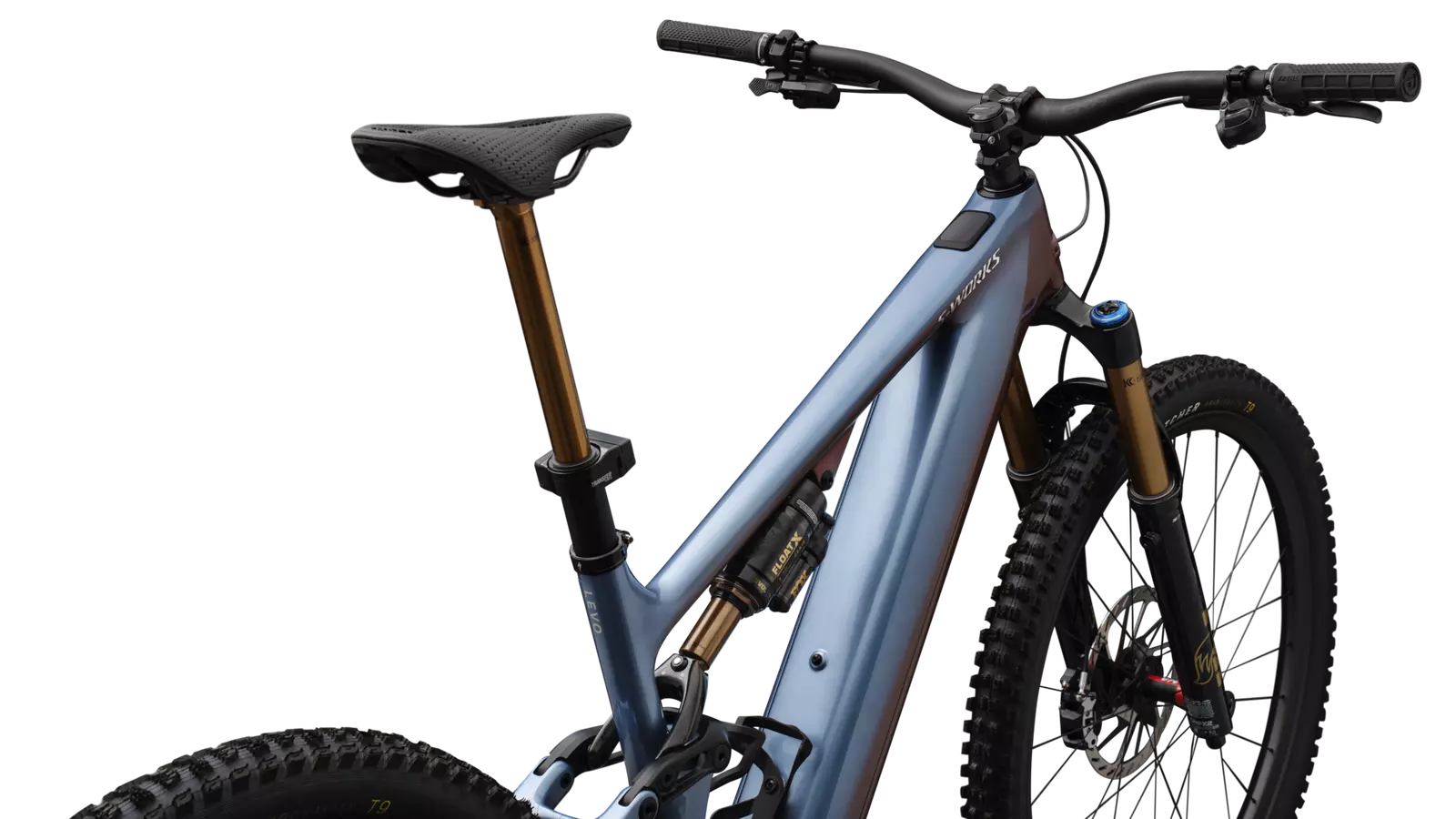

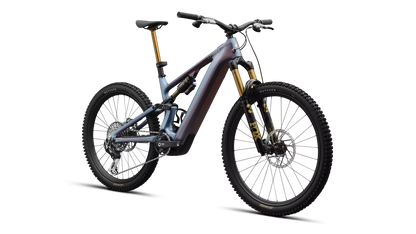

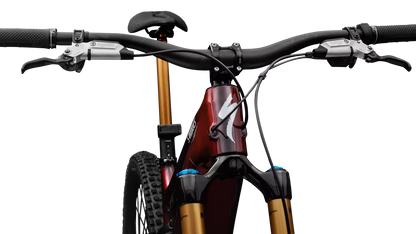

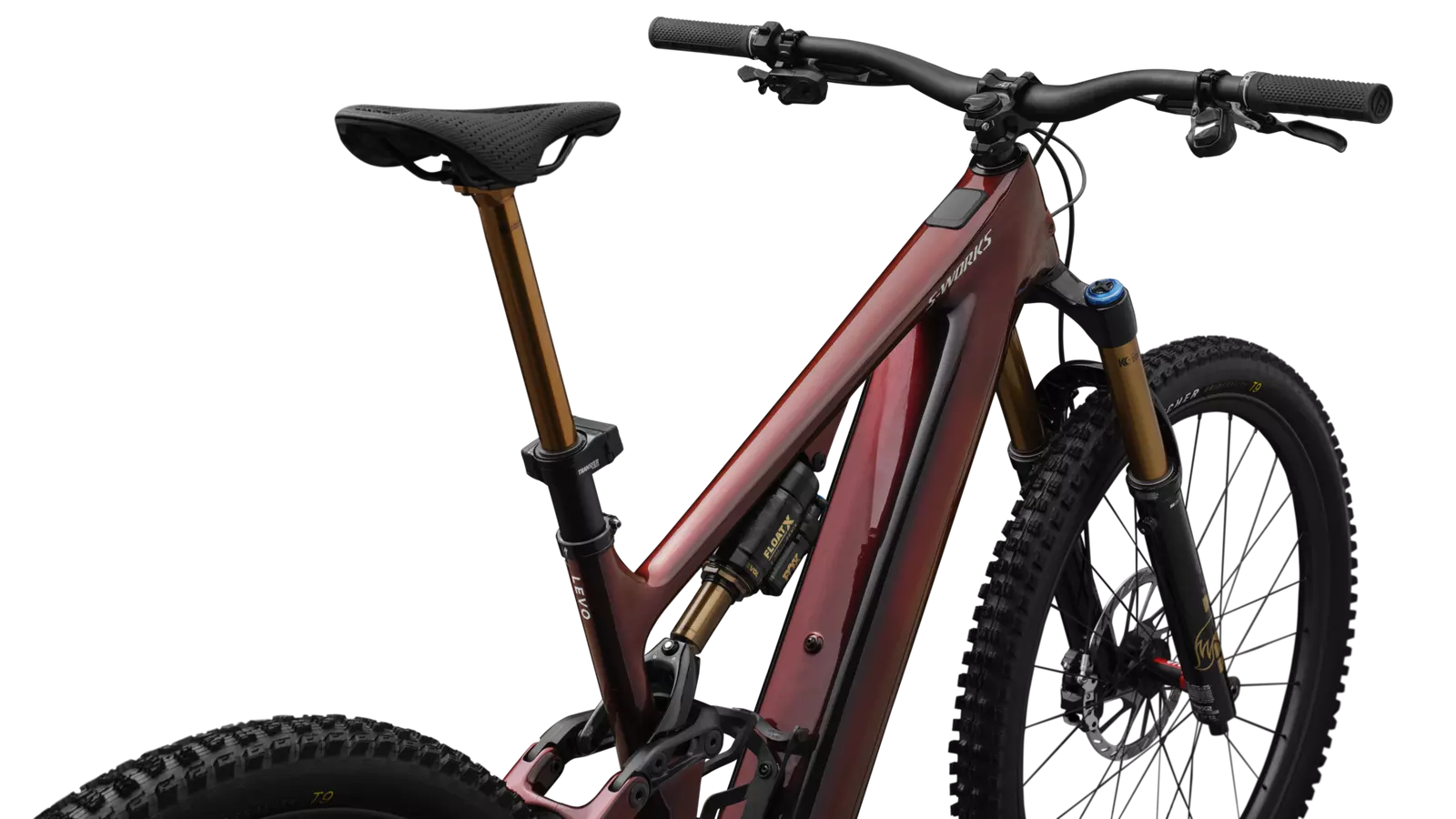

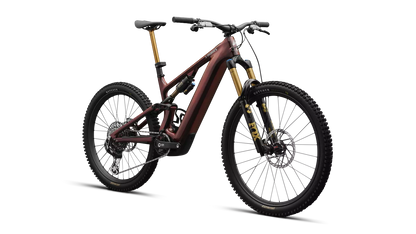

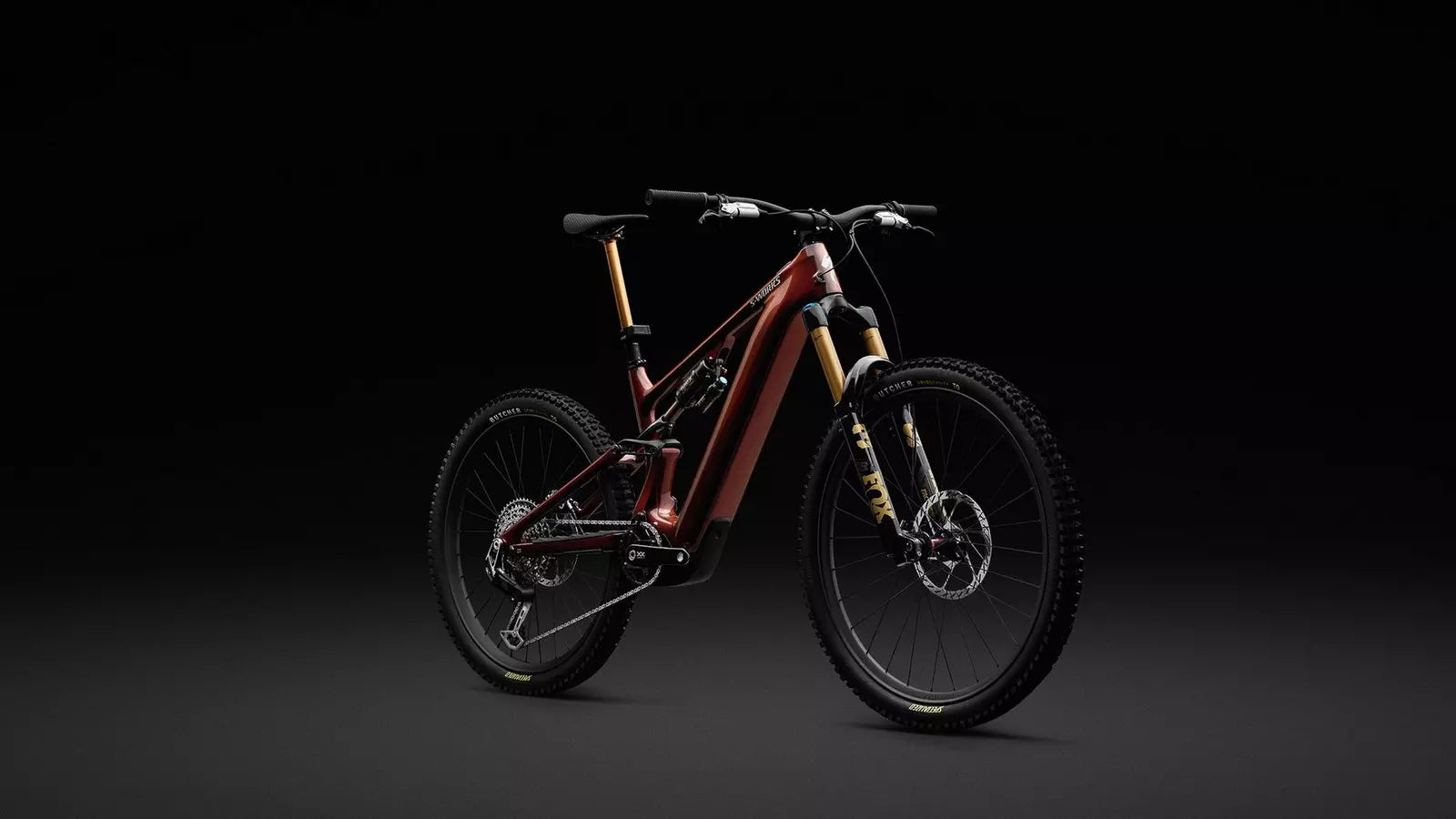

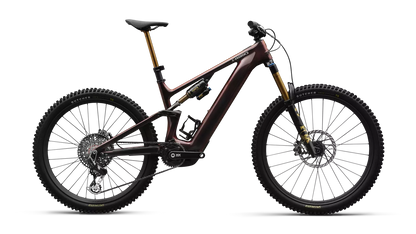

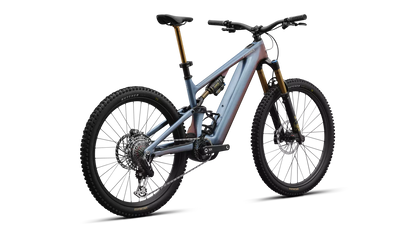

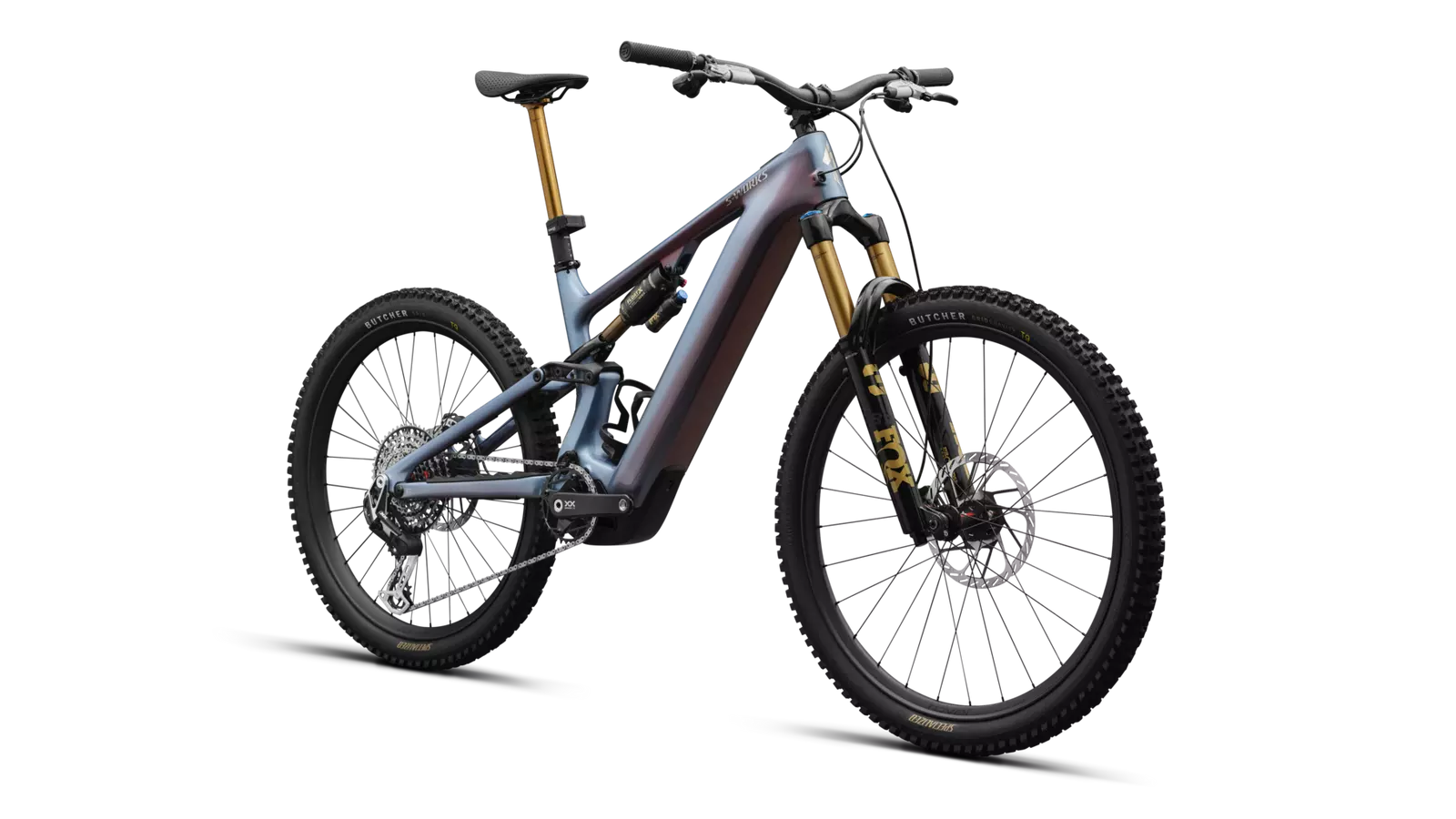

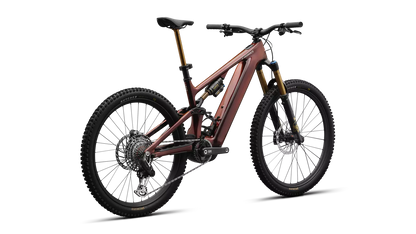

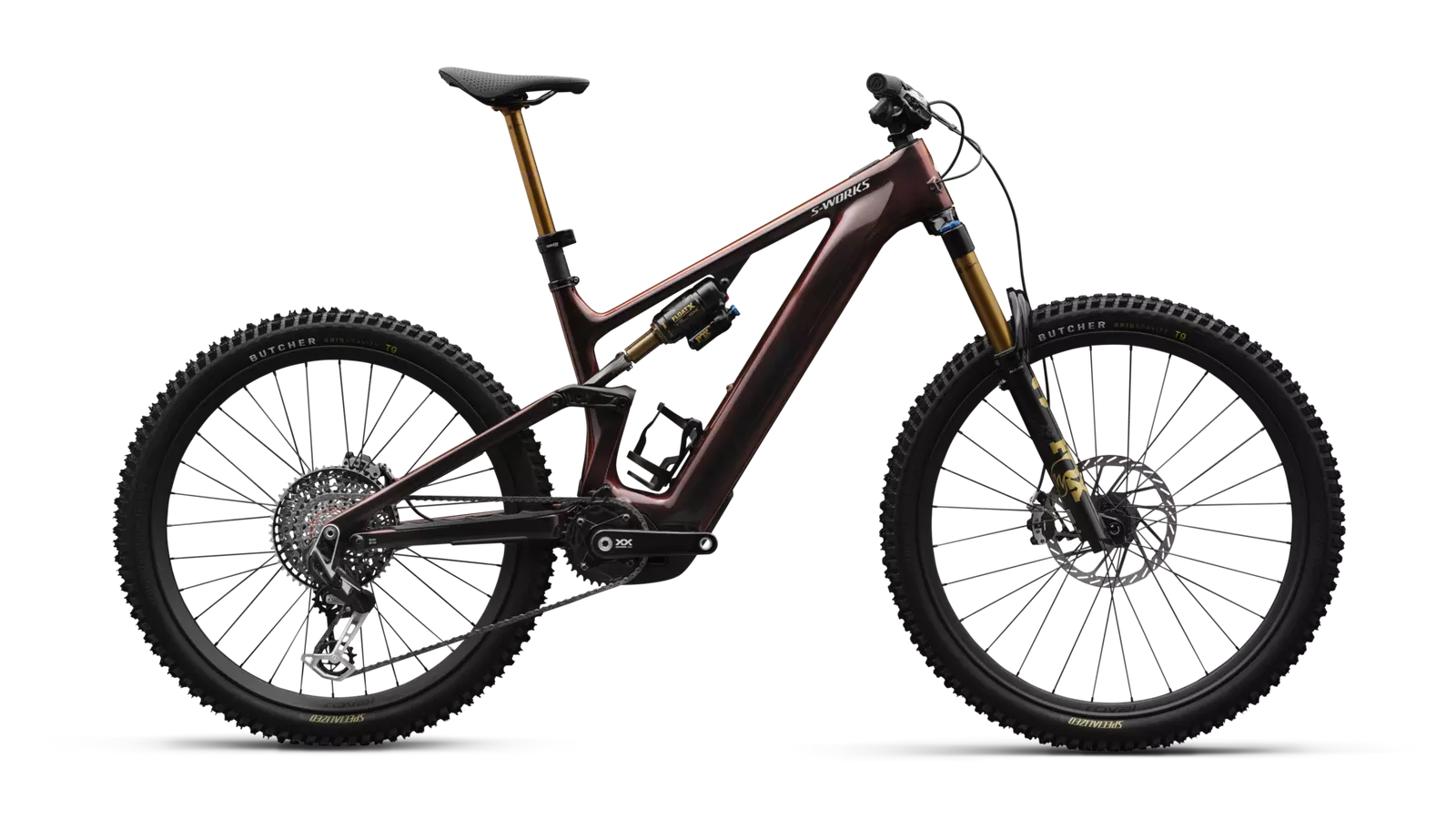

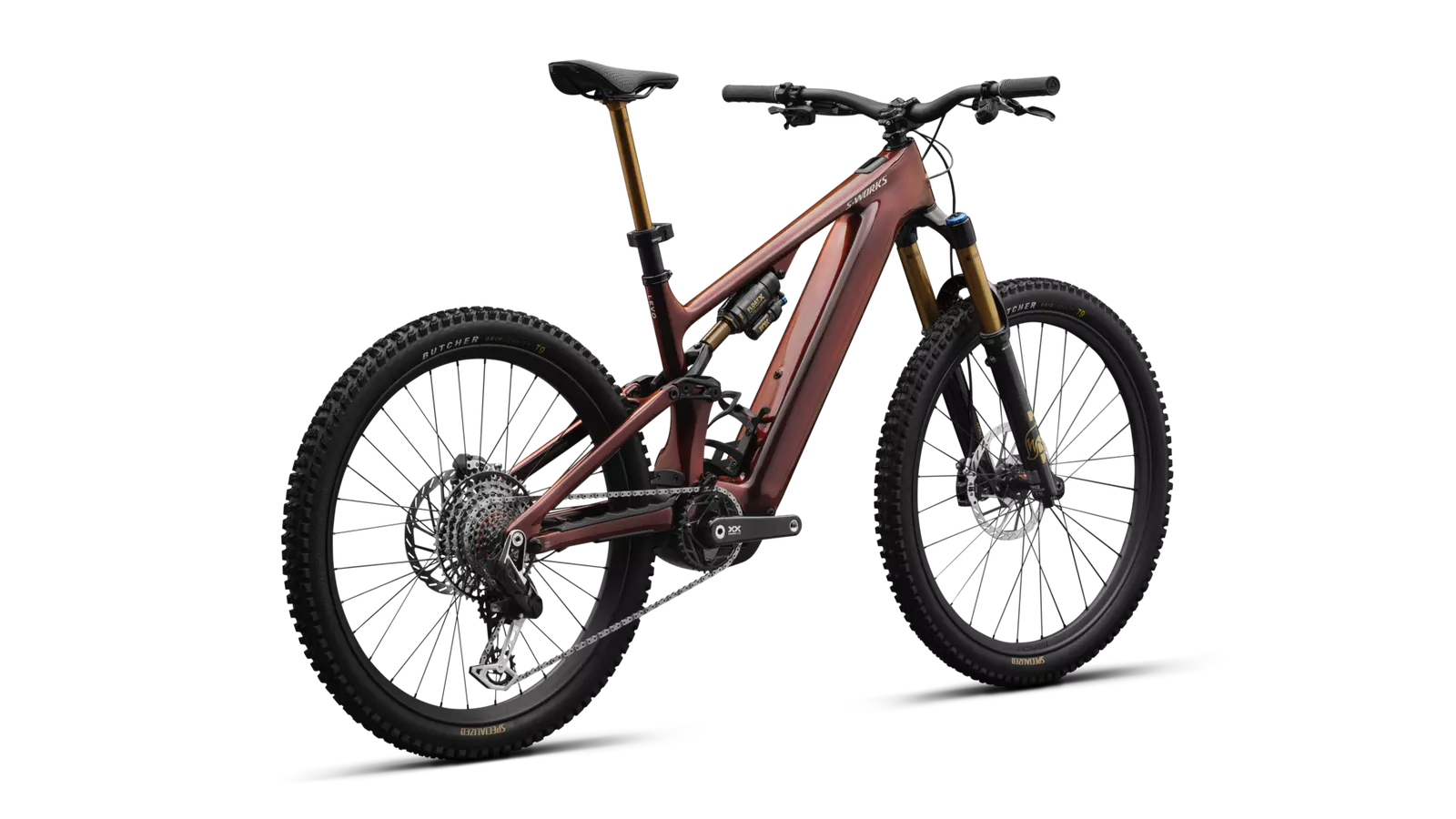

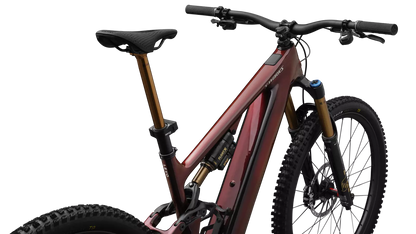

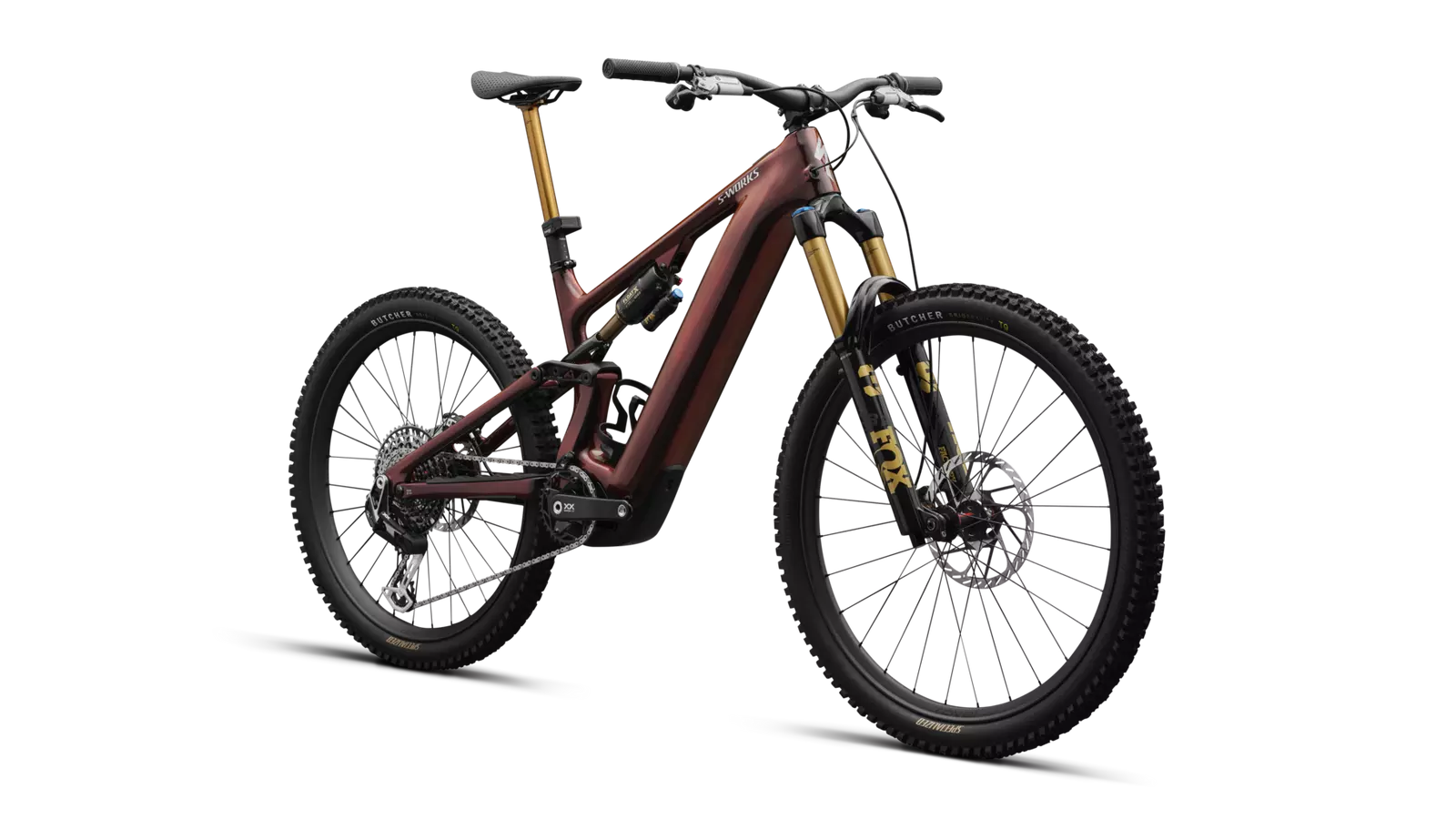

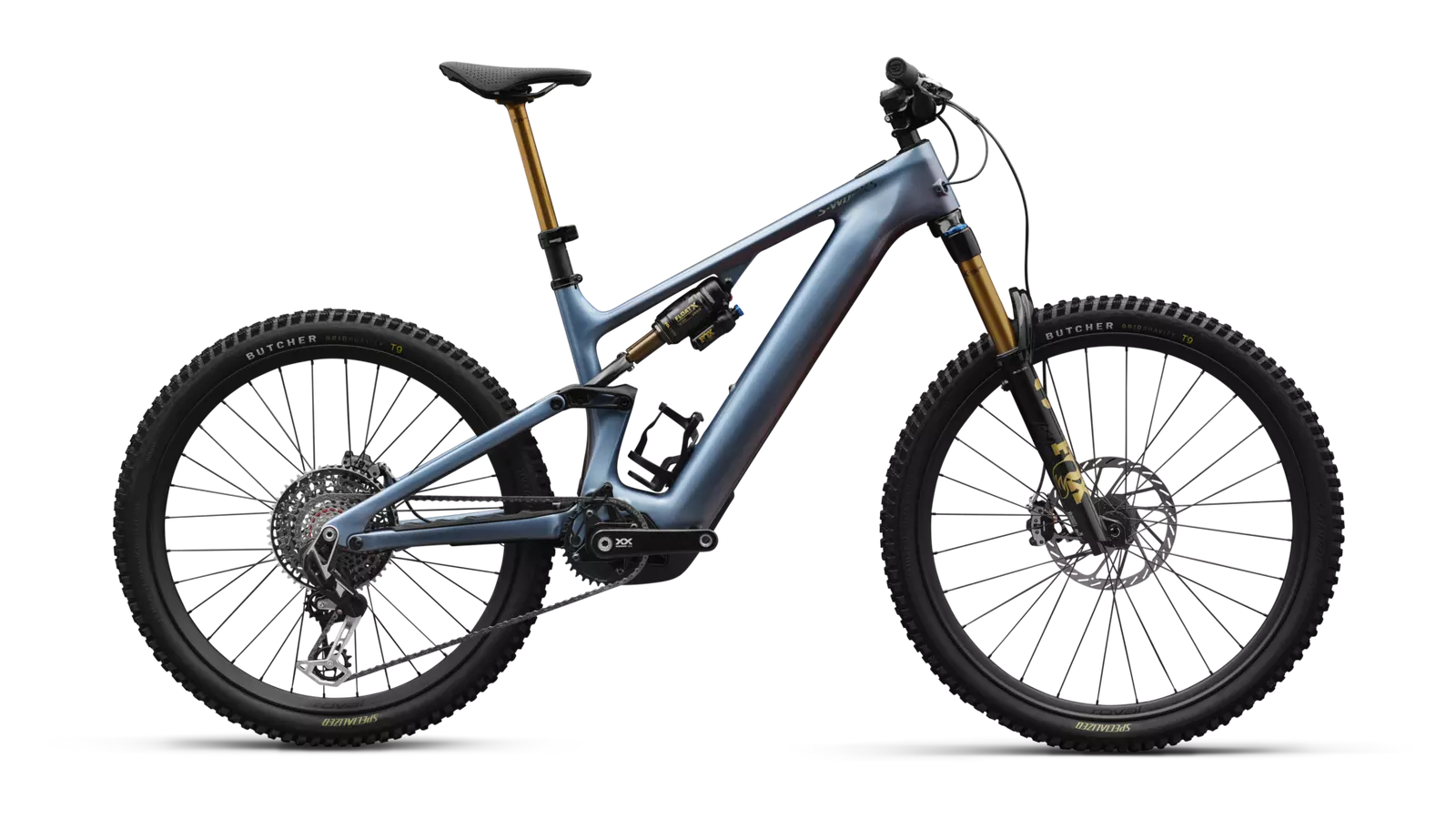

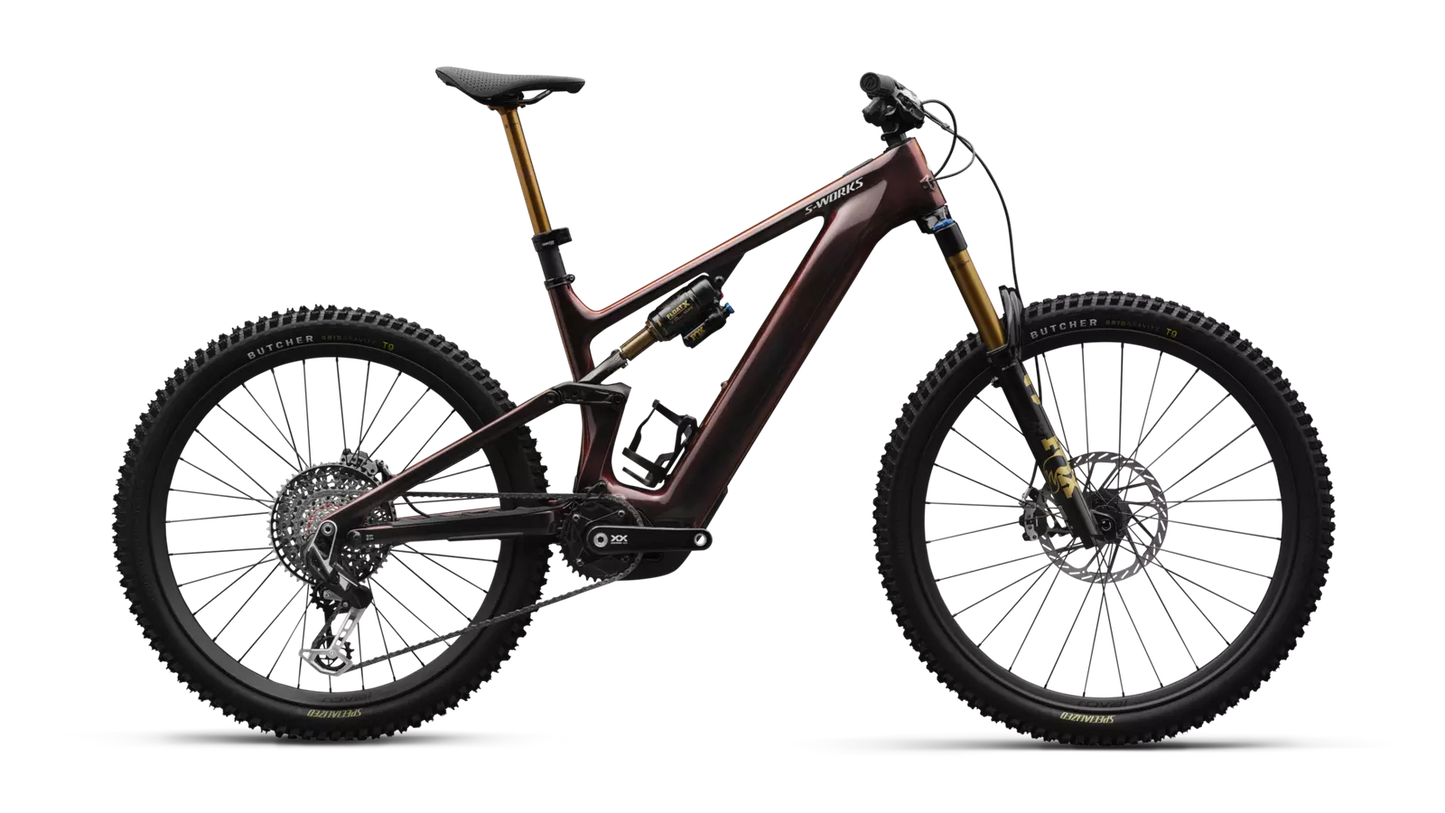

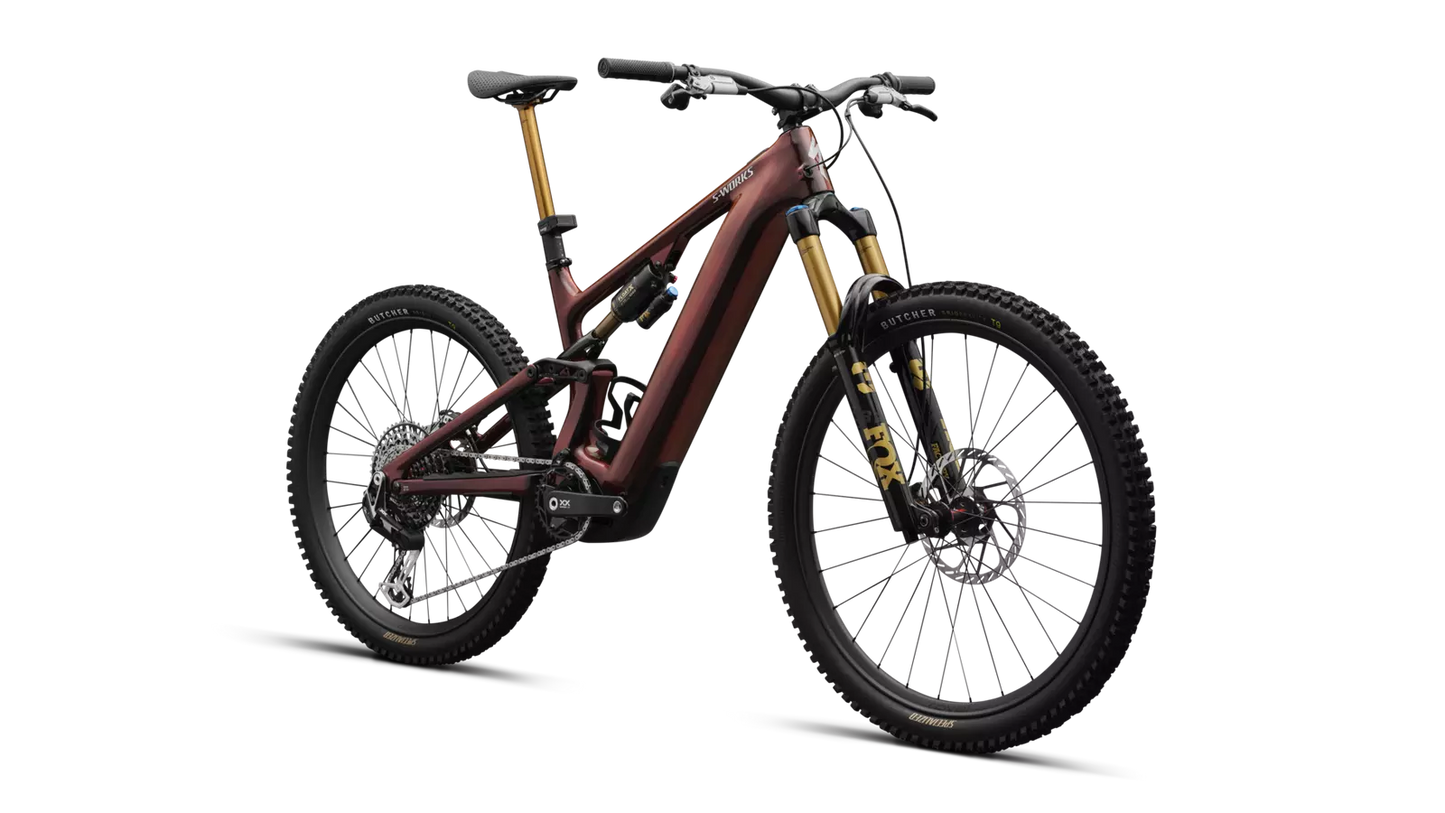

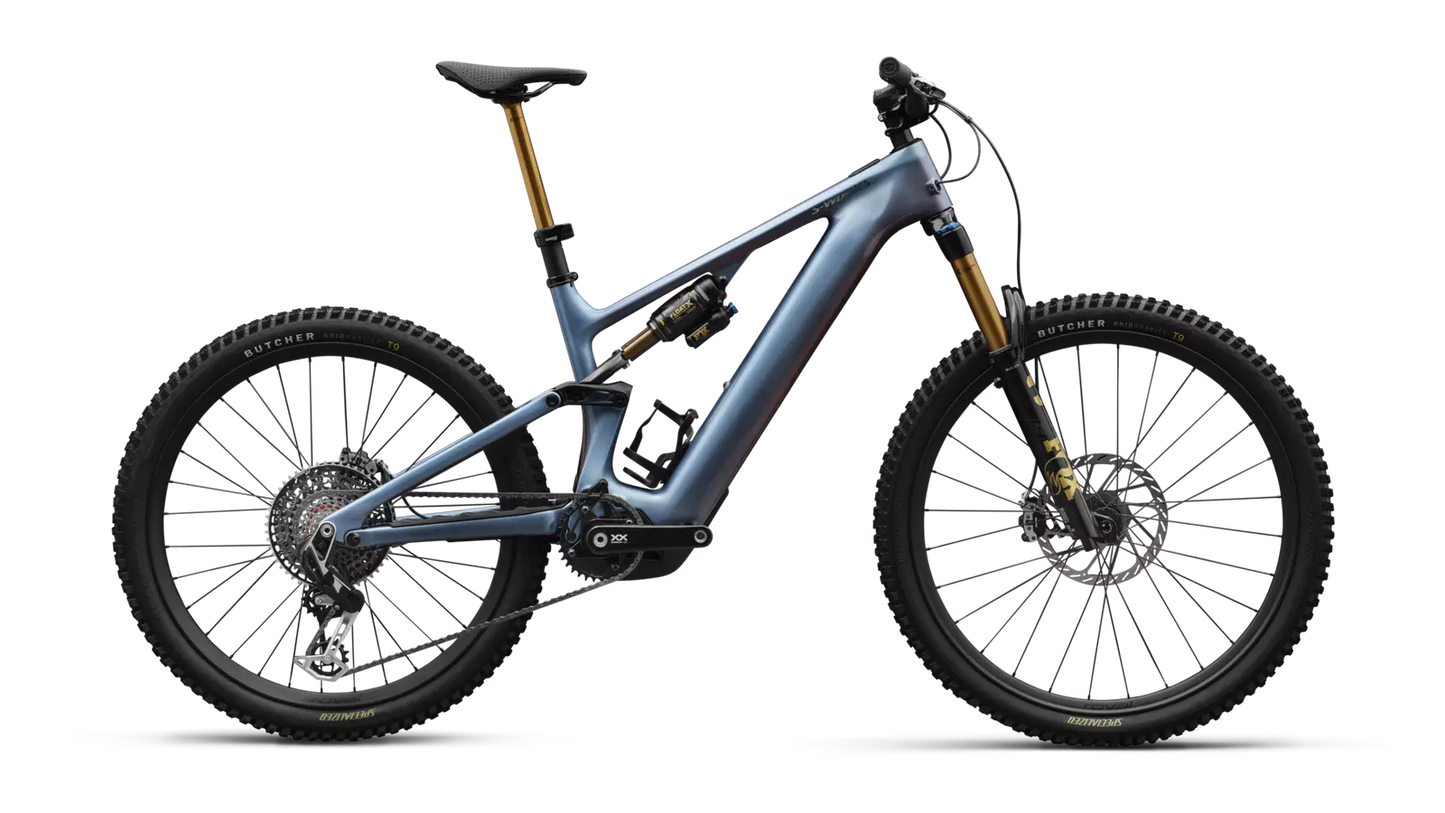

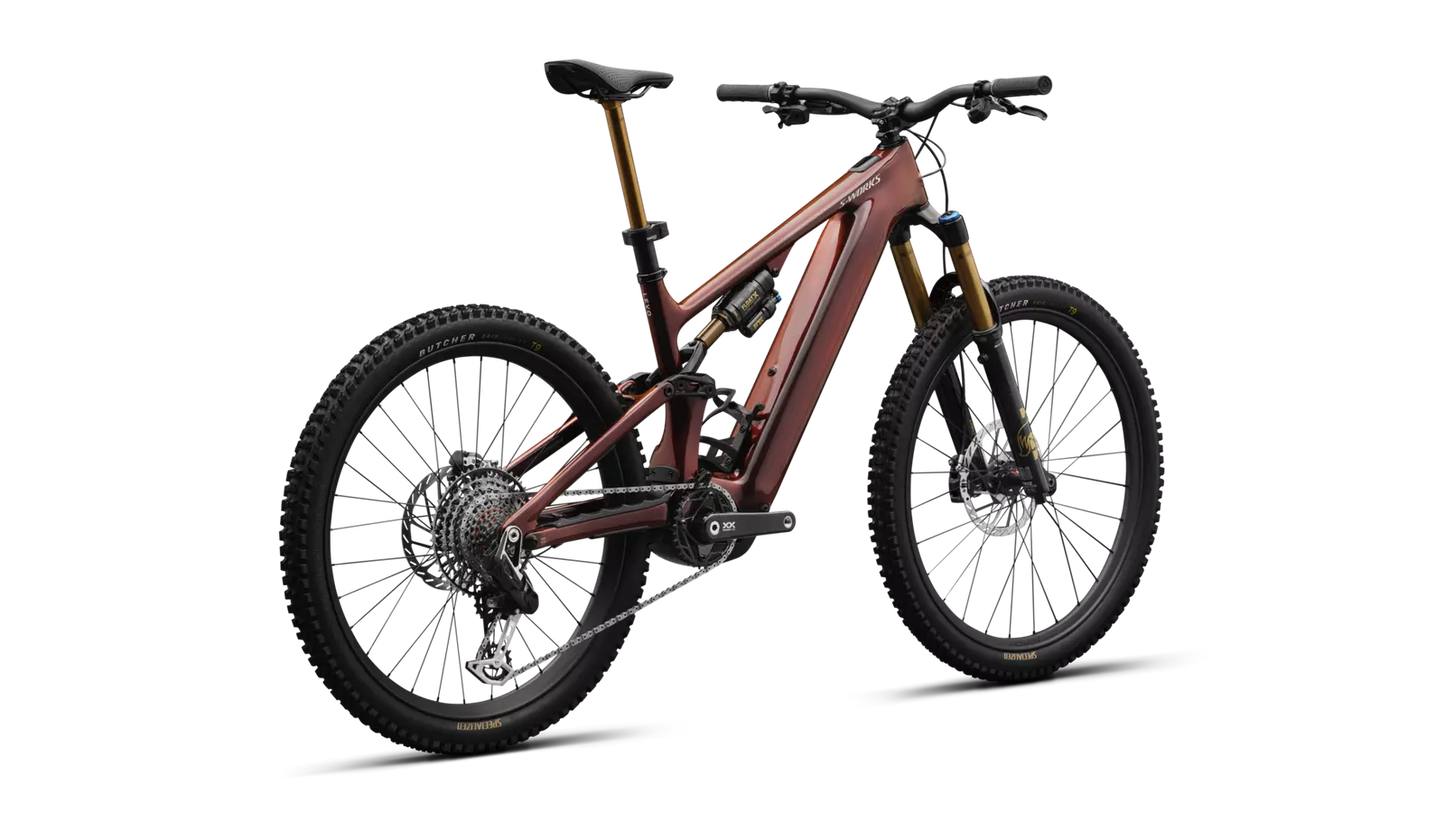

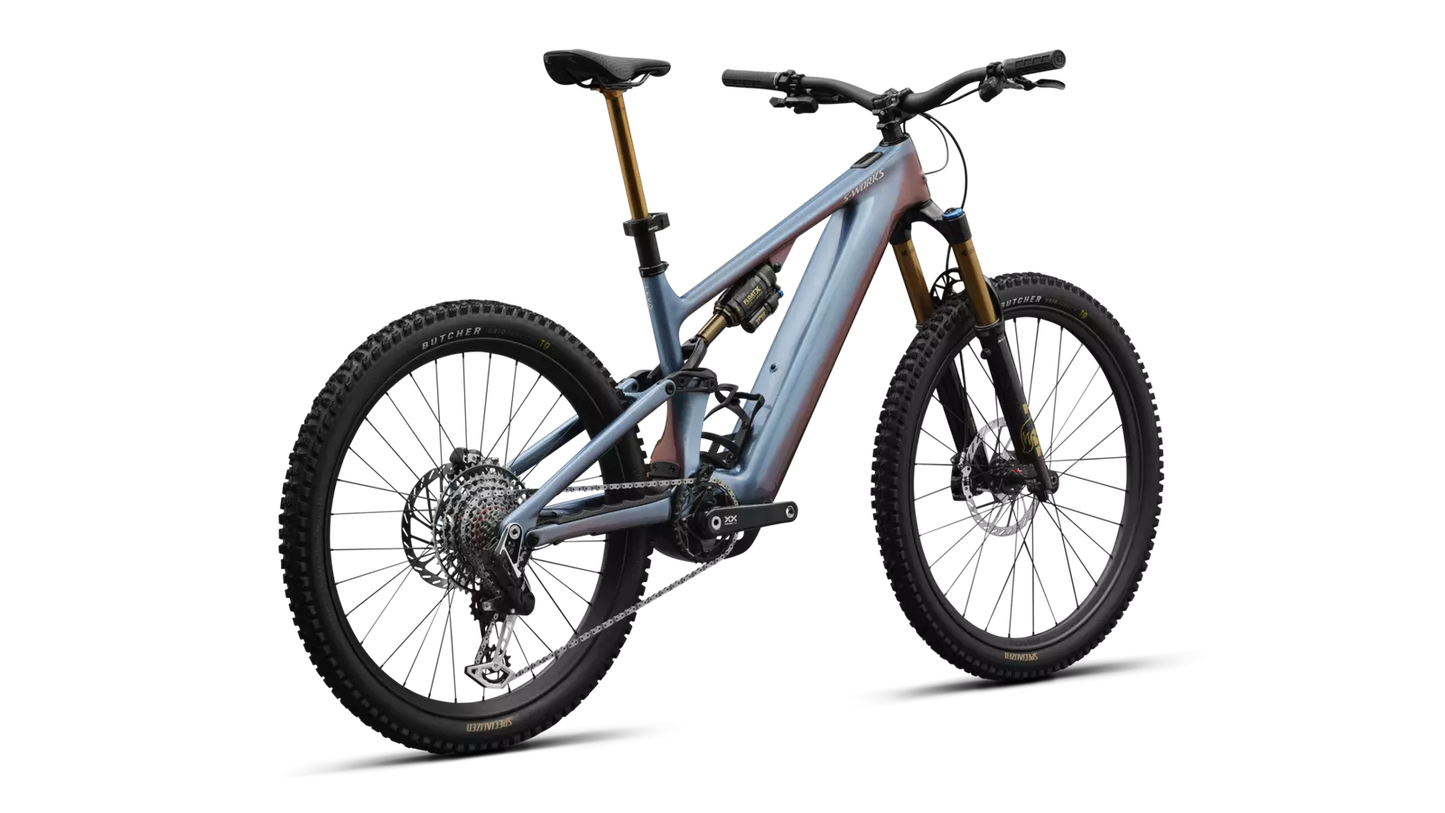

S-Works Turbo Levo 4
S-Works Turbo Levo 4
SKU: 95224-0104
Couldn't load pickup availability
S-Works Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
E-Bike

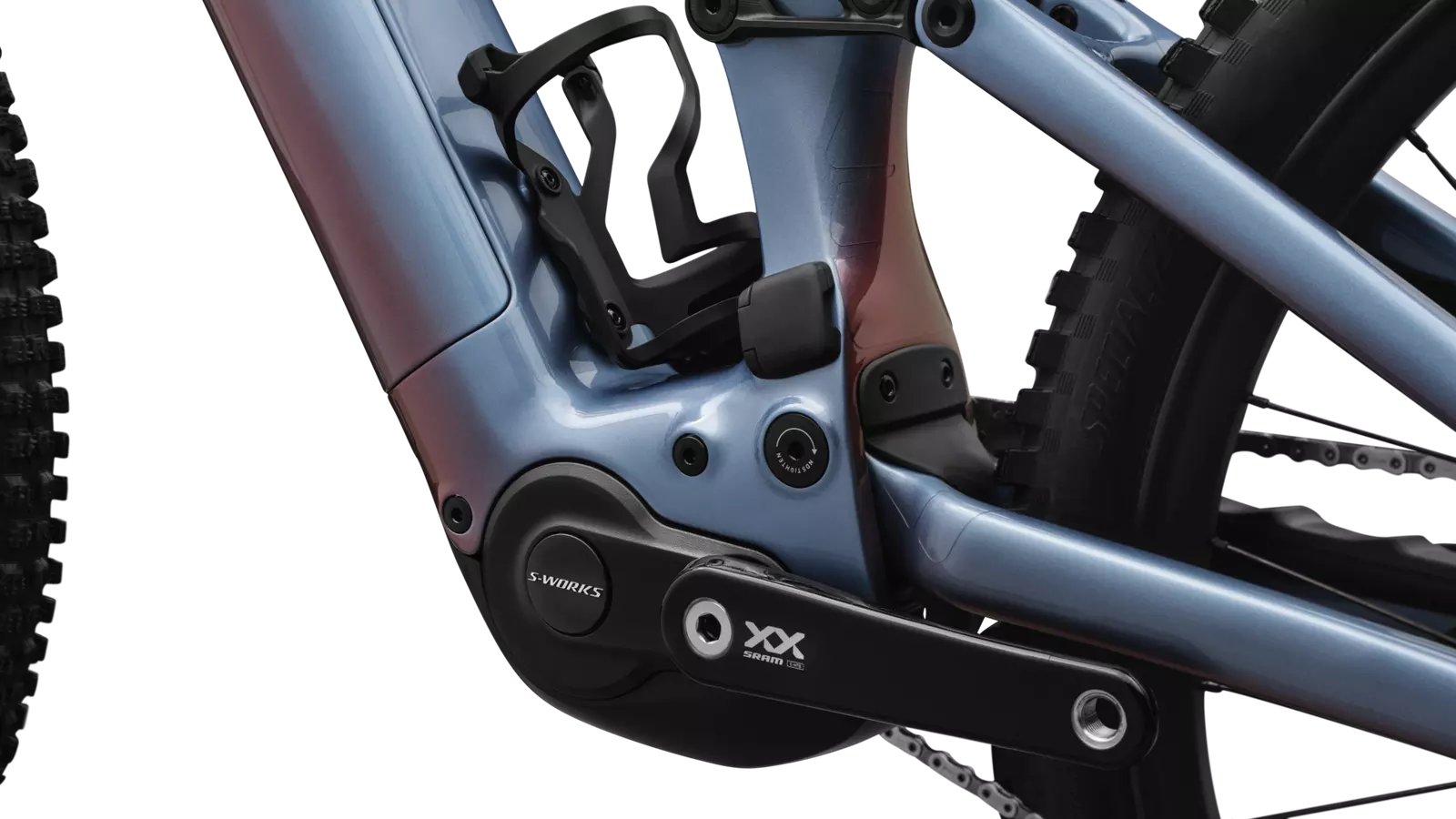

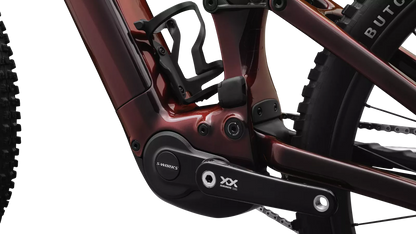

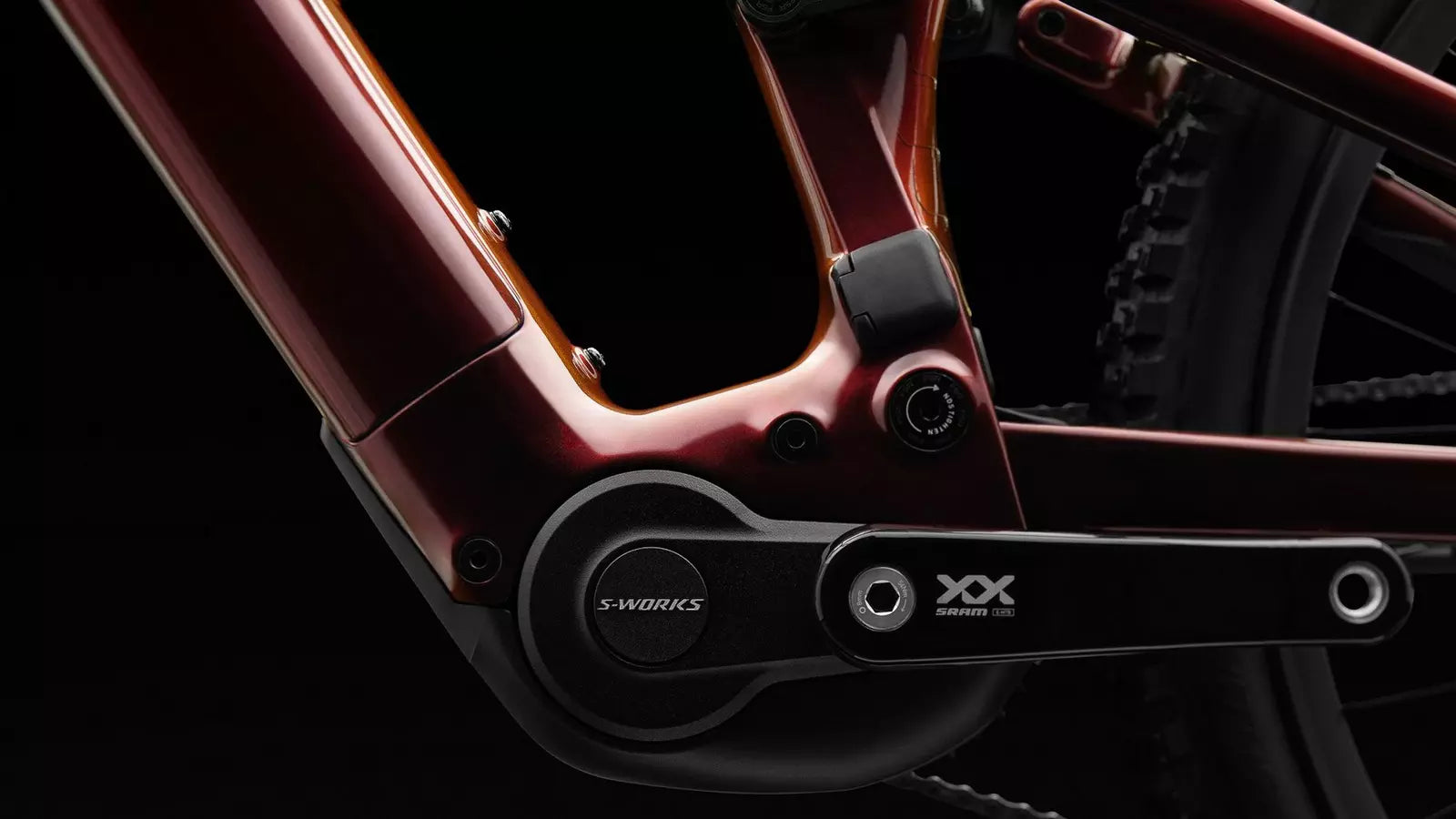

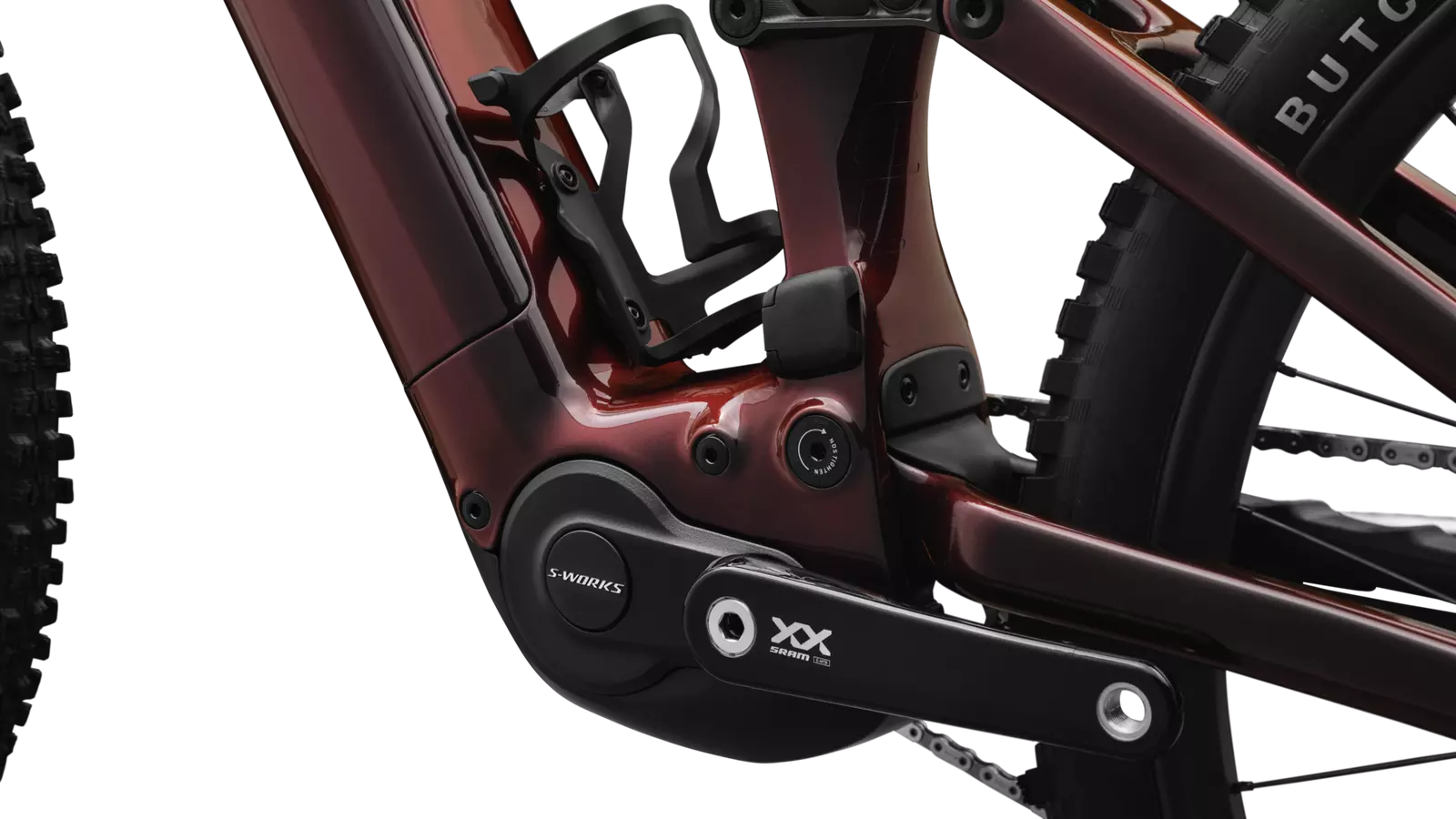

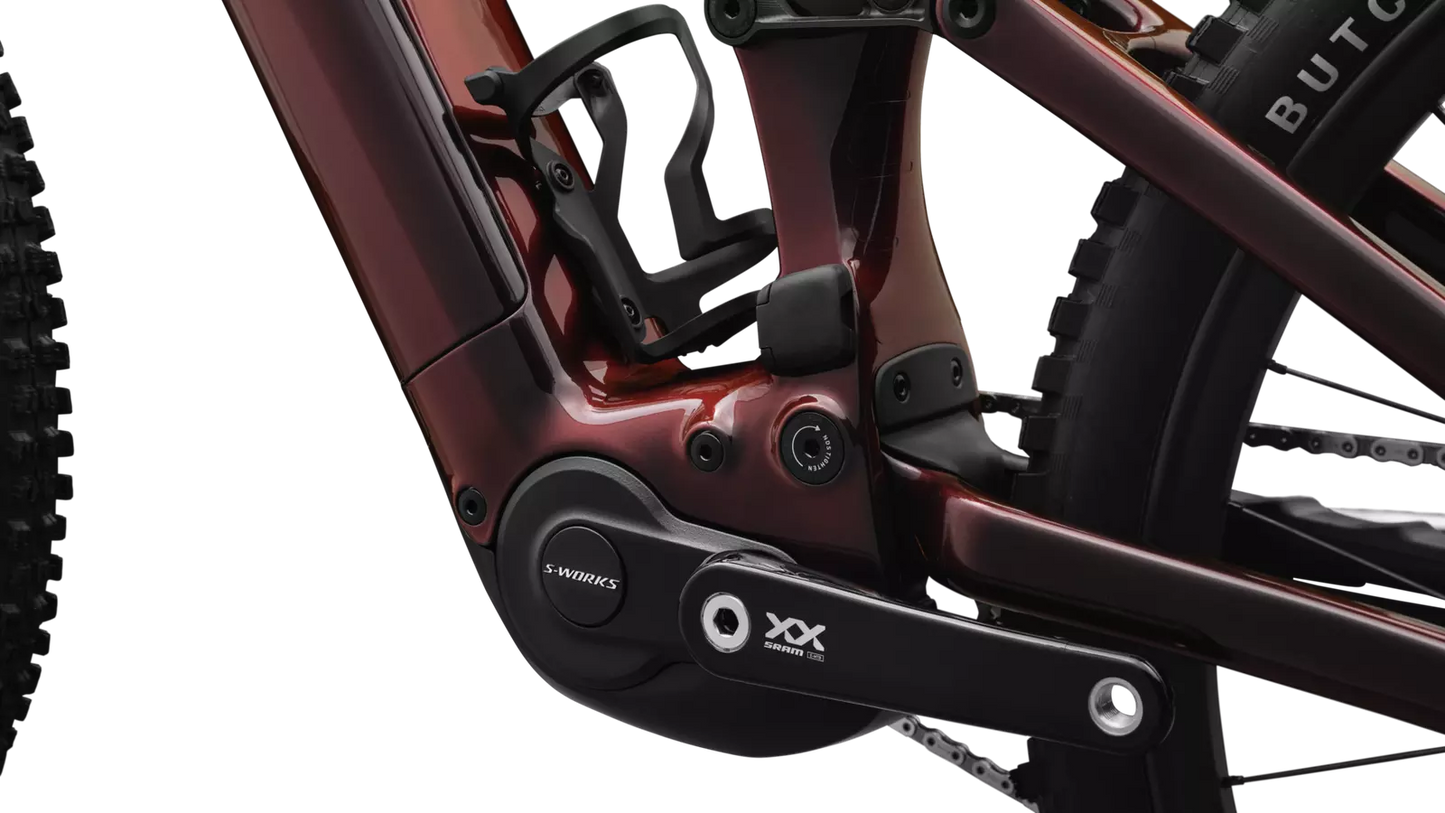

Motor - All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power
Battery - 840wh battery

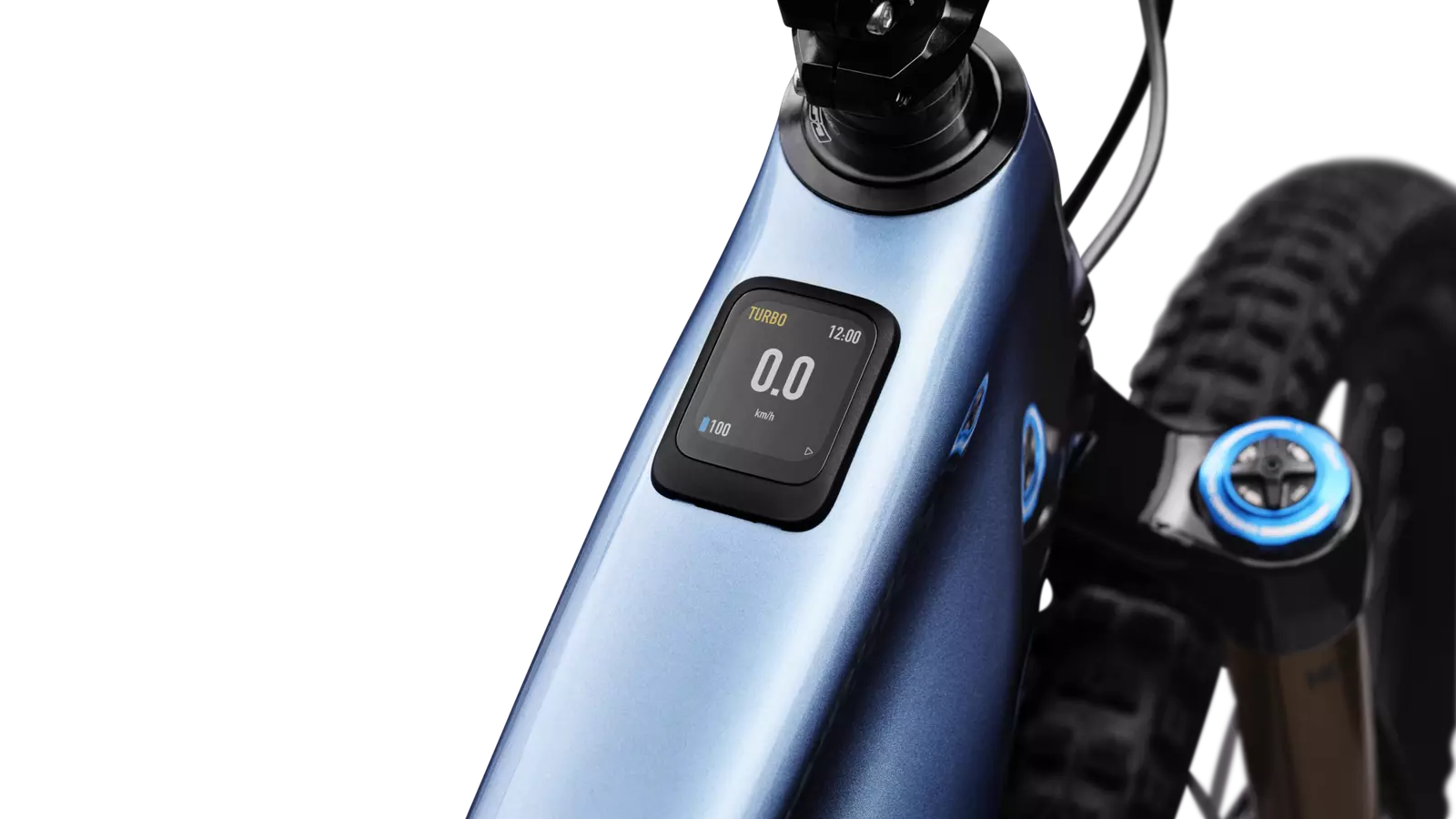

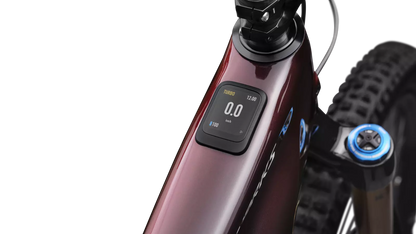

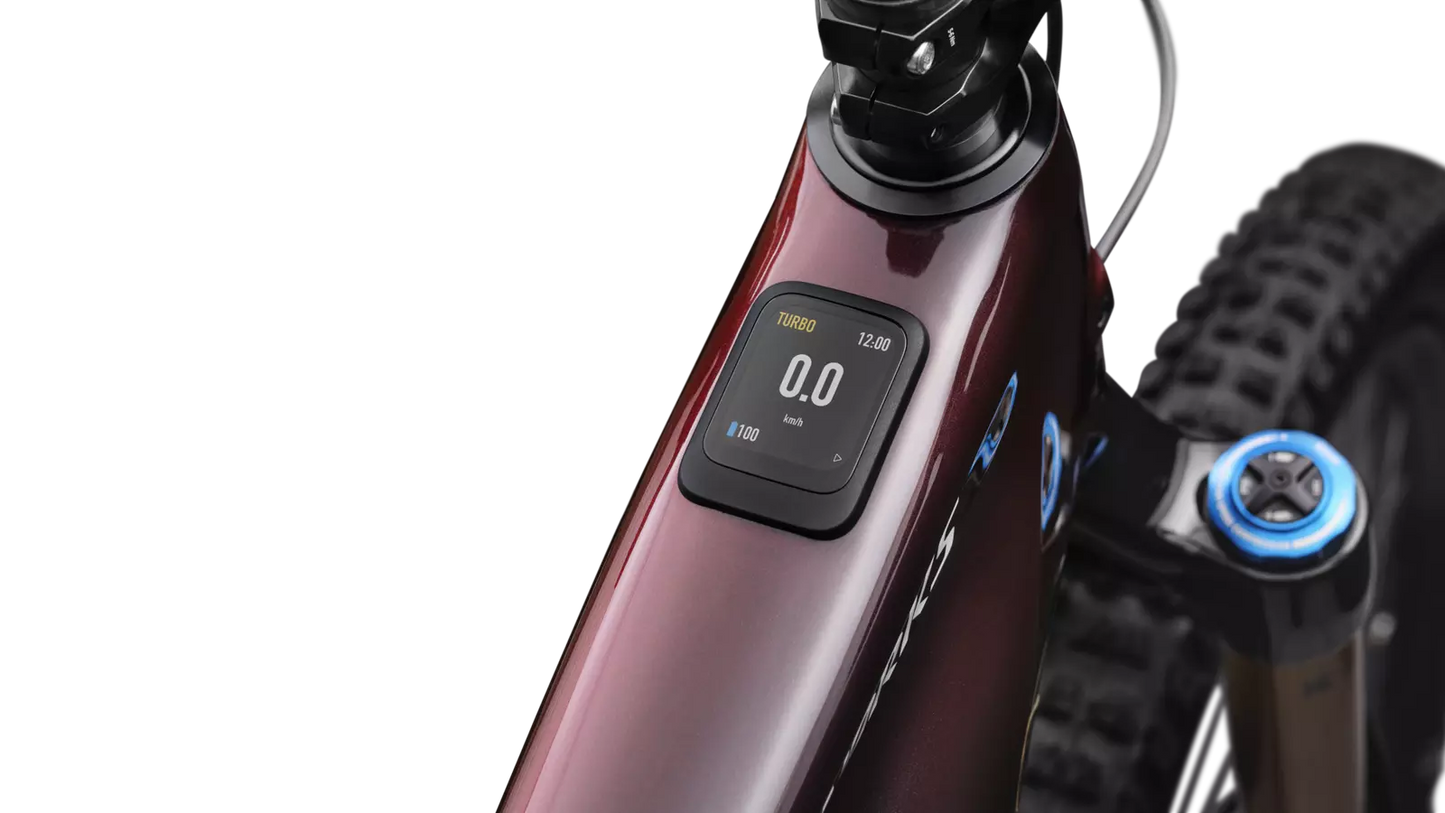

UI/Remote - All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger - Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Frameset

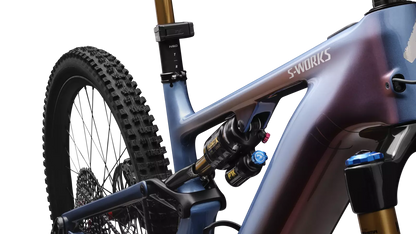

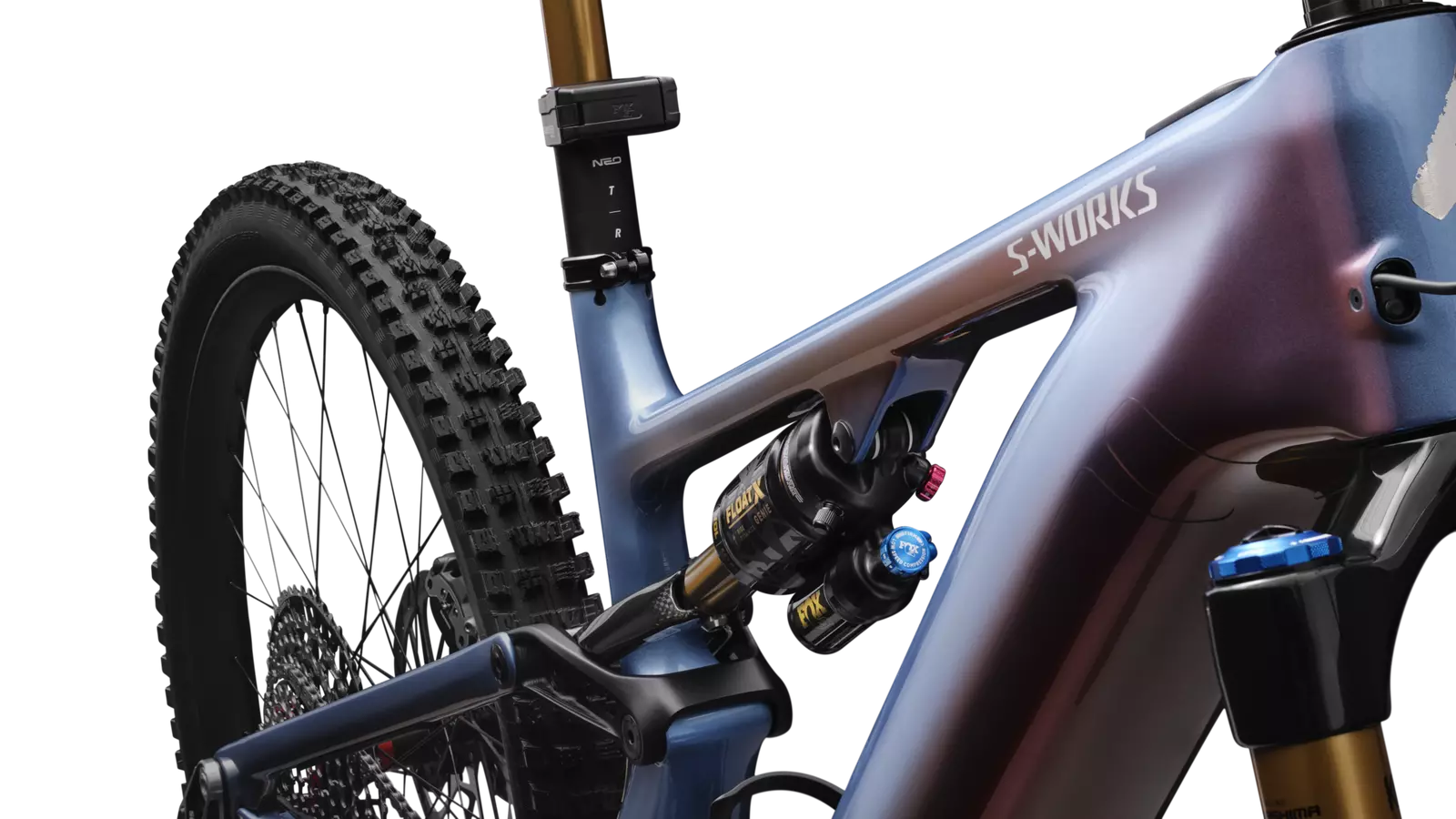

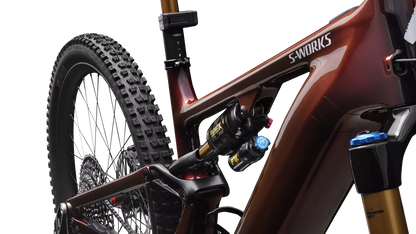

Frame - All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder - Alloy, 38.6mm
Suspension

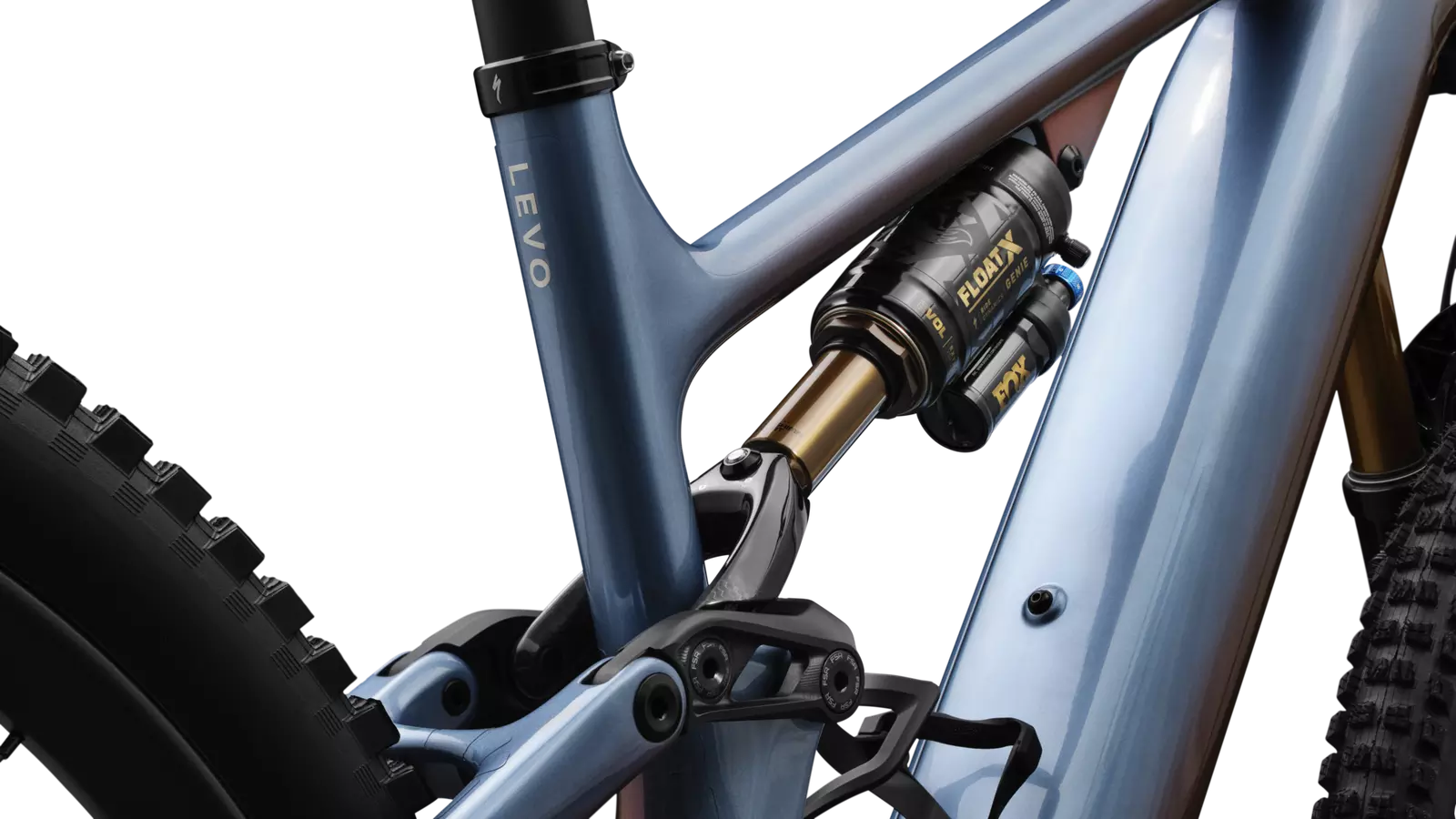

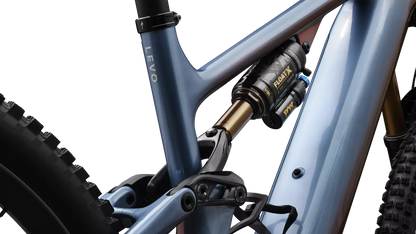

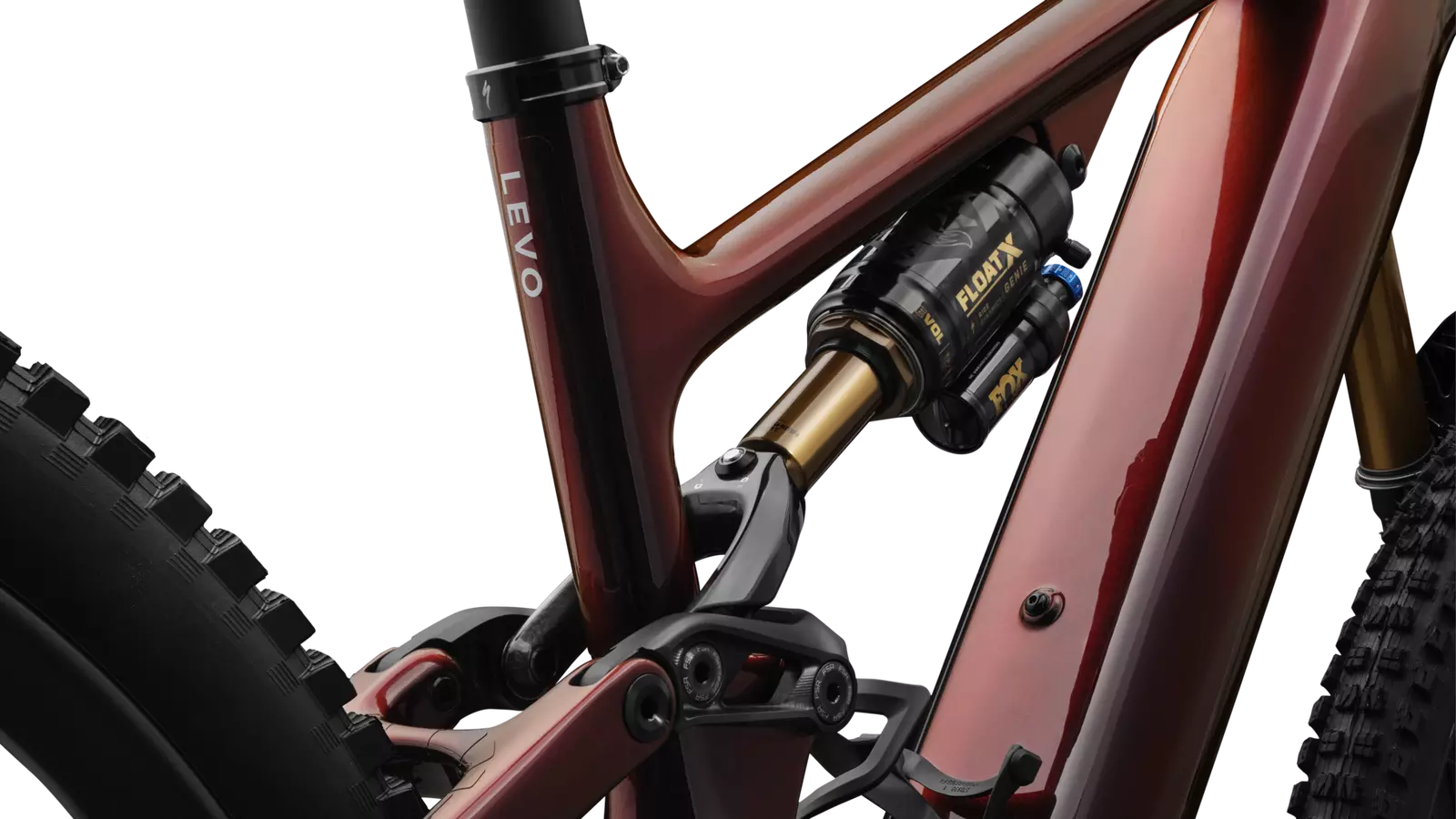

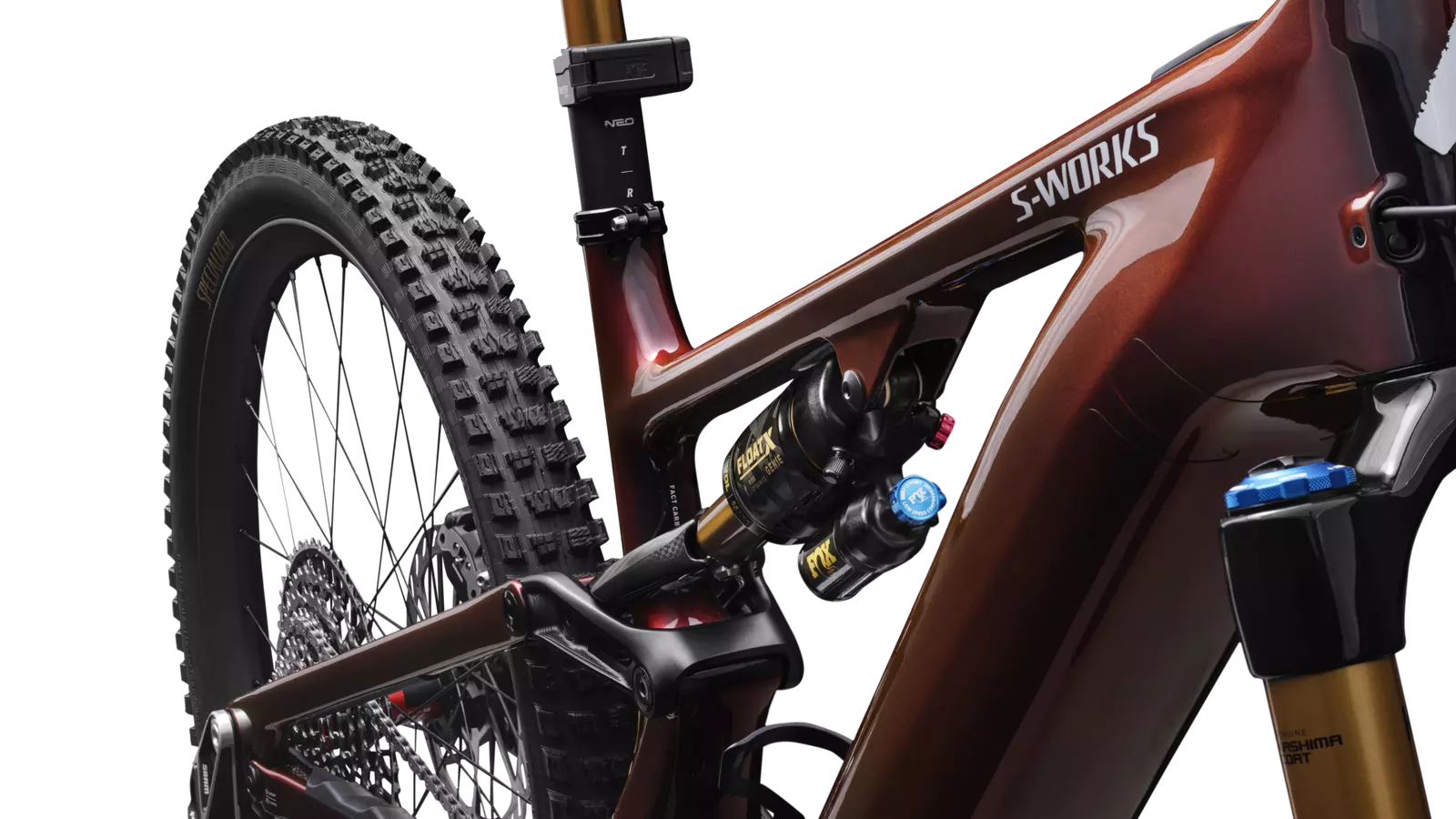

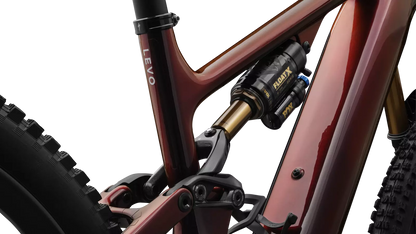

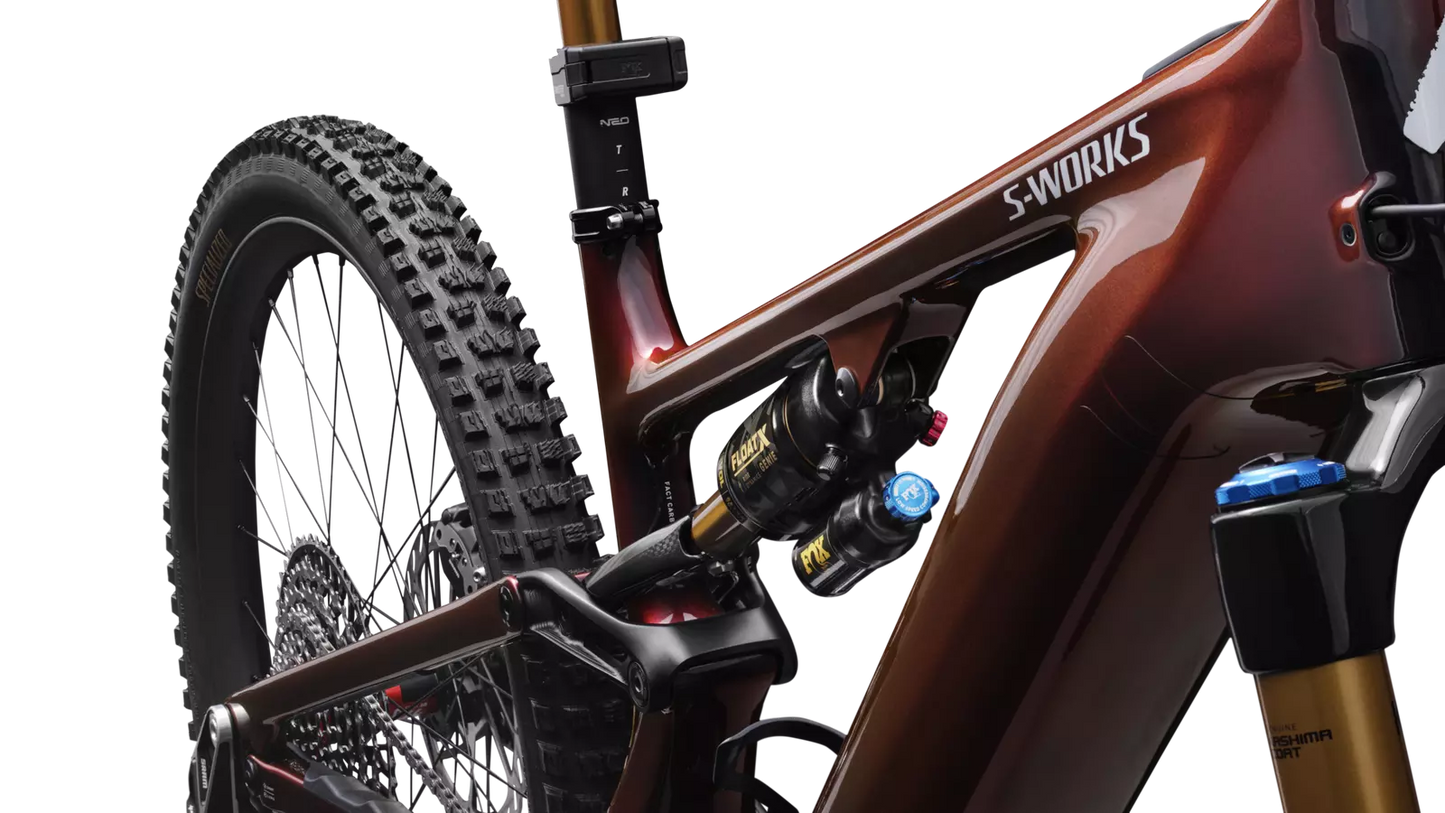

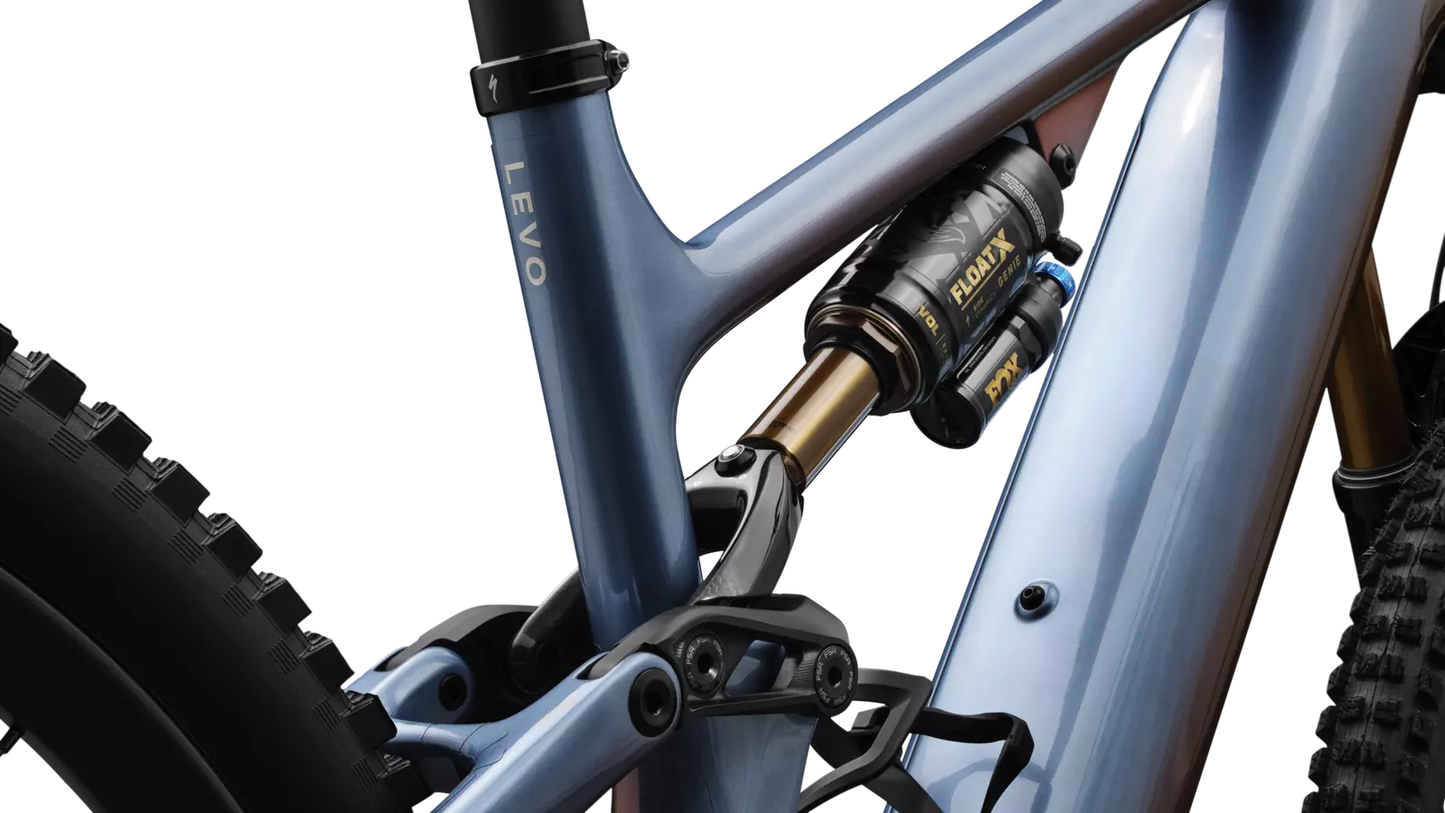

Rear Shock - FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

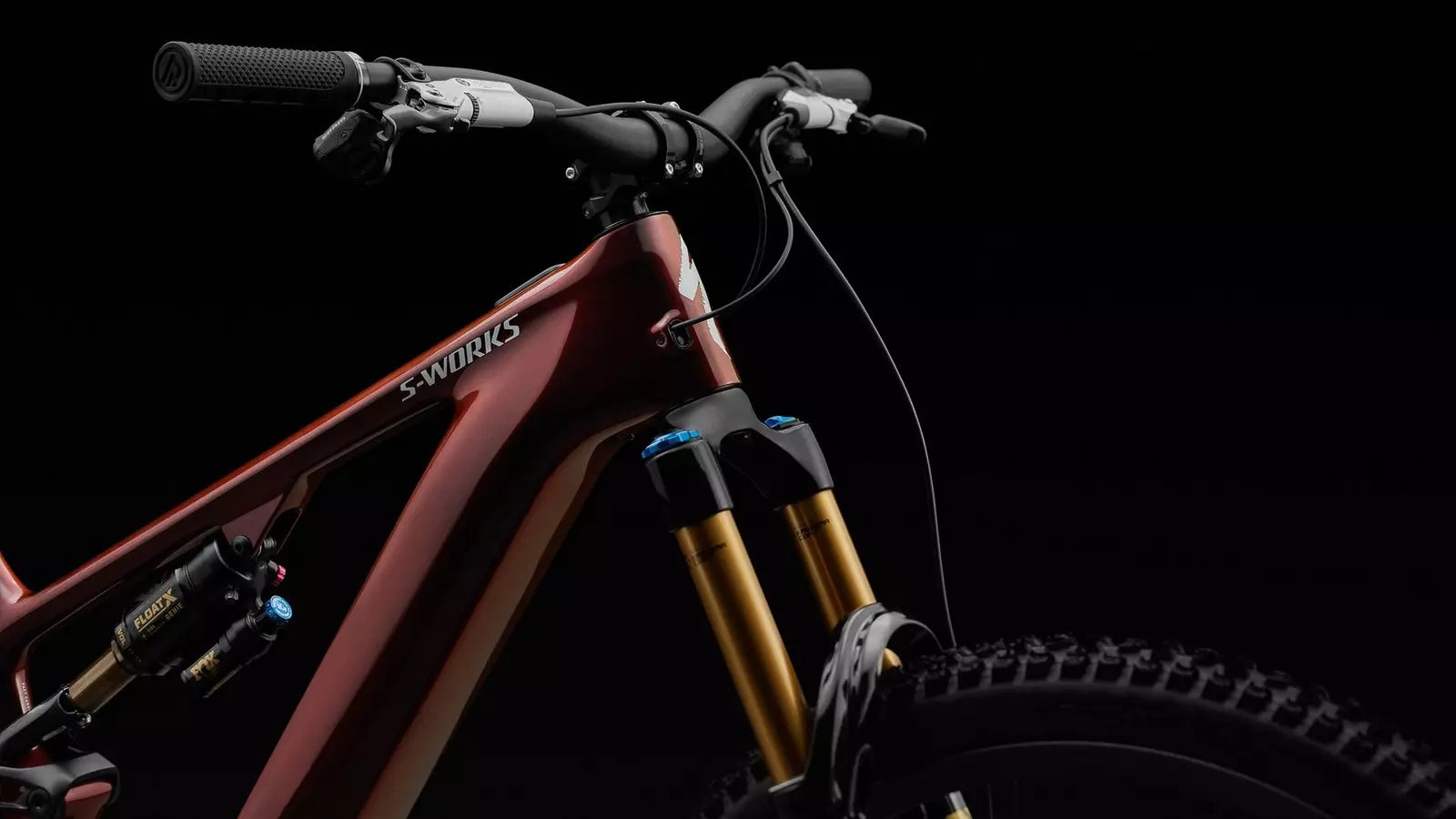

Fork - FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Brakes
Front Brake - SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
Rear Brake - SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor
Drivetrain
Shift Levers - SRAM AXS POD Ultimate Controller with Discrete clamp
Rear Derailleu - SRAM XX Eagle Transmission Derailleur
Cassette - SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Chain - SRAM XX EagleTransmission Flattop Chain
Crankset - SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm
Chainrings - SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Front Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Wheel - Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h
Rear Tire - Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Rear Wheel - Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h

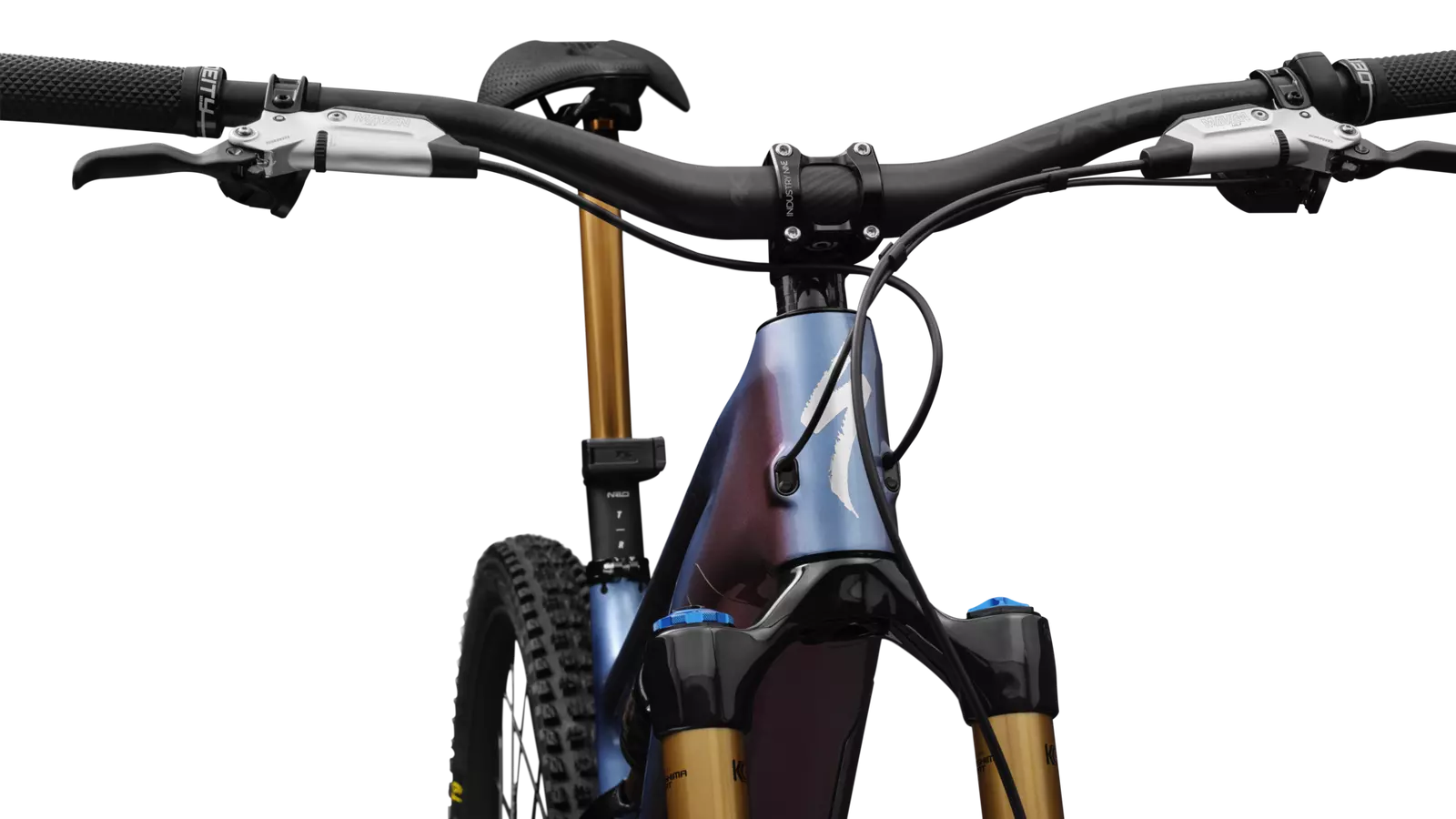

Cockpit
Stem - Industry 9 Mountain stem, 35mm clamp, 40mm length

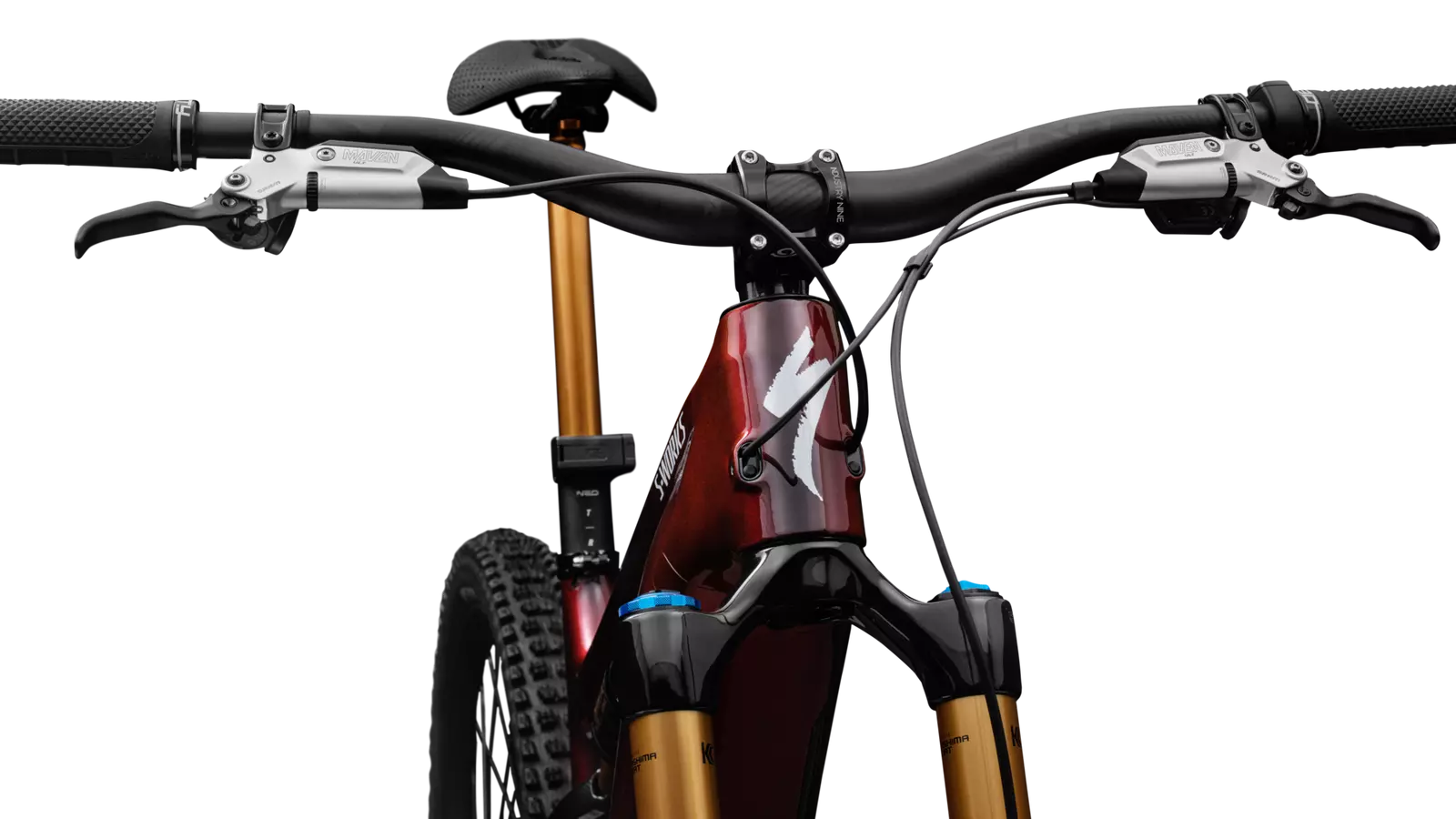

Handlebars - RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
Grips - Deity Lockjaw grips
Saddle - Specialized Power Pro Mirror w/hollow Ti rails

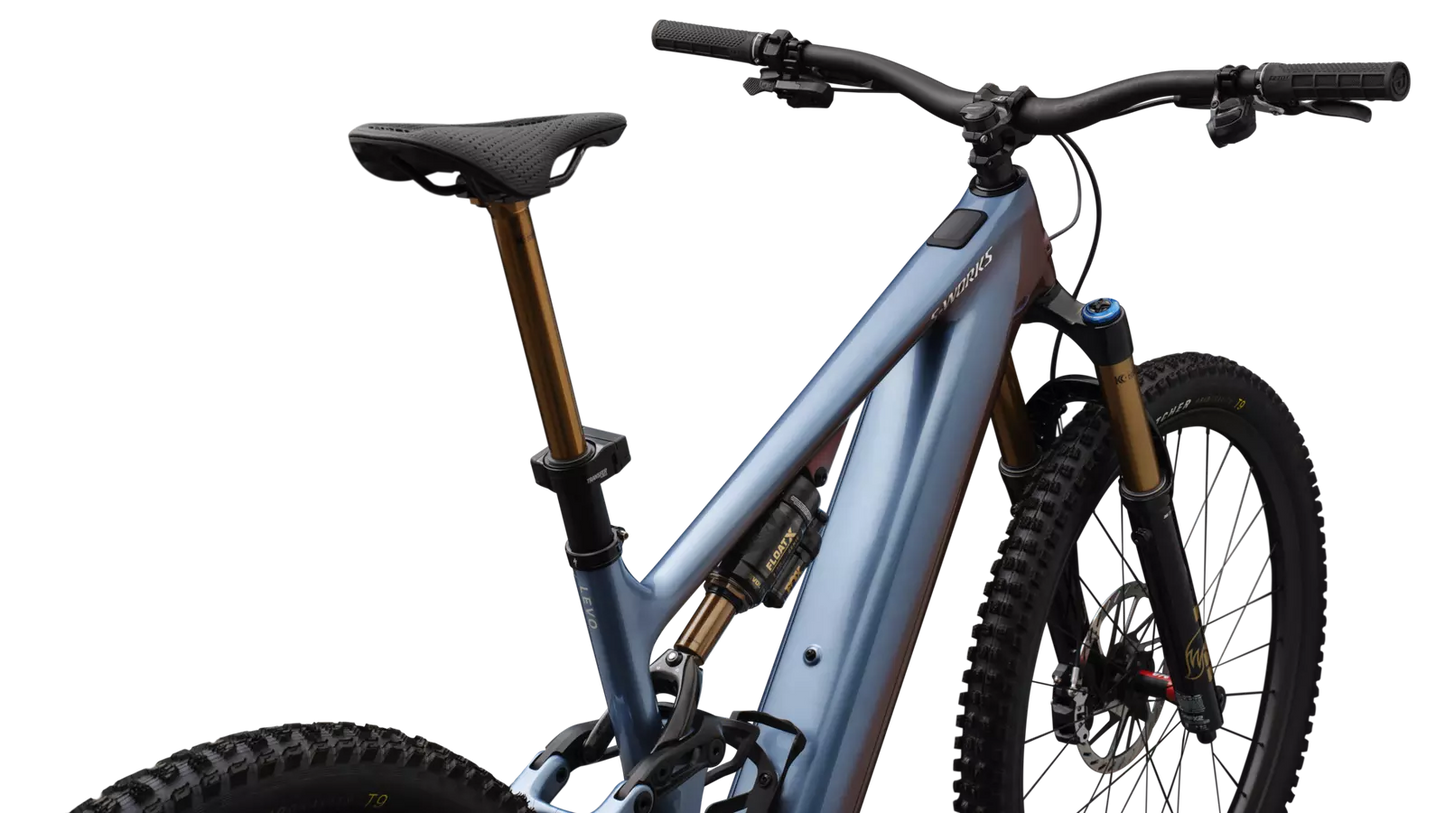

SeatPost - FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm
Accessories
SWAT - SWAT internal downtube storage
Weight
Weight
23.68kg (52 lb, 3.3 oz)
Weight Size - S4
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
