Product Details

Get Ready To Rally

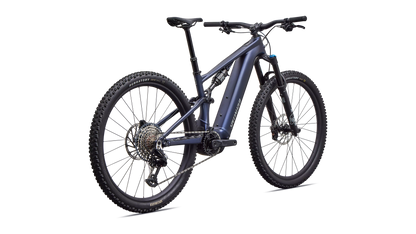

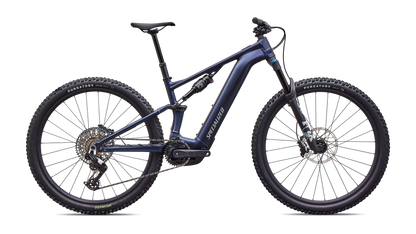

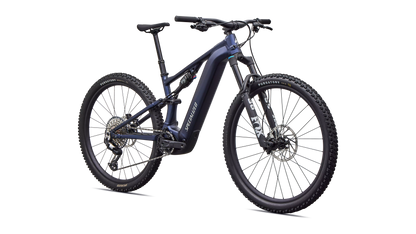

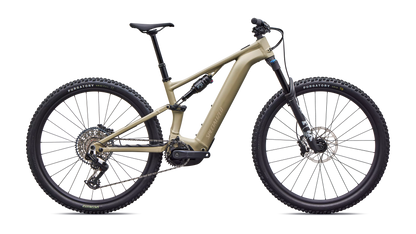

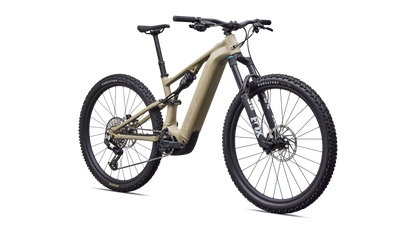

Levo R

Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, the Levo R e-MTB channels the SuperNatural power of Levo 4—but sheds its manners. And with complete builds up to 2 kg lighter than Levo 4, it brings an even more responsive, lively feel to every trail. Its purpose-built chassis and XC Trail-tuned suspension make it feel like a rally car unleashed on dirt: you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.

At a Glance

Use
Full Power Electric XC Trail

E-System
Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame
M5 Aluminum, Geo Adj & SWAT Storage

Suspension
Front: 140mm FOX 36 SL Performance GRIP
Rear: 130mm GENIE - FOX FLOAT Performance

Drivetrain
SRAM Eagle 90 Transmission

Wheels
Specialized Alloy Wheels

Technical Specifications

E-Bike

Battery
840Wh battery

UI/Remote
MasterMind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Motor
Specialized 3.1 Motor, 105Nm torque, 810W power

Charger
Specialized 4amp charger

Frameset

Seat Binder
Alloy, 38.6mm

Frame
M5 Aluminum, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel

Suspension

Fork
FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm

Rear Shock
FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm

Brakes

Front Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Rear Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor

Drivetrain

Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel

Chain
SRAM 70 Transmission 12-Speed Flattop Chain

Shift Levers
SRAM Eagle 90T, single click, with MMX

Crankset
SRAM Eagle 70, BROSE/ISIS, 160mm, 32T

Rear Derailleur
SRAM Eagle 90 T-Type

Cassette
SRAM GX Transmission, XS 1275, 10-52t

Wheels & Tires

Spokes
DT Swiss Elemental

Front Hub
Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h

Rear Hub
Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb

Front Tire
Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4

Rear Tire
Specialized Purgatory, GRID Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)

Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes
Standard, Presta Valve

Cockpit

Stem
Alloy Trail Stem, 35mm bar bore

Saddle
Body Geometry Power Comp, steel rails

Handlebars
Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide

Grips
Specialized Trail Grips

Seatpost
X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset

Accessories

SWAT
SWAT internal downtube storage

Product Details

Product ID
229898

Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.

For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight

Weight
24.24 kg (53 lb, 7.0 oz)

Weight Size
S3
