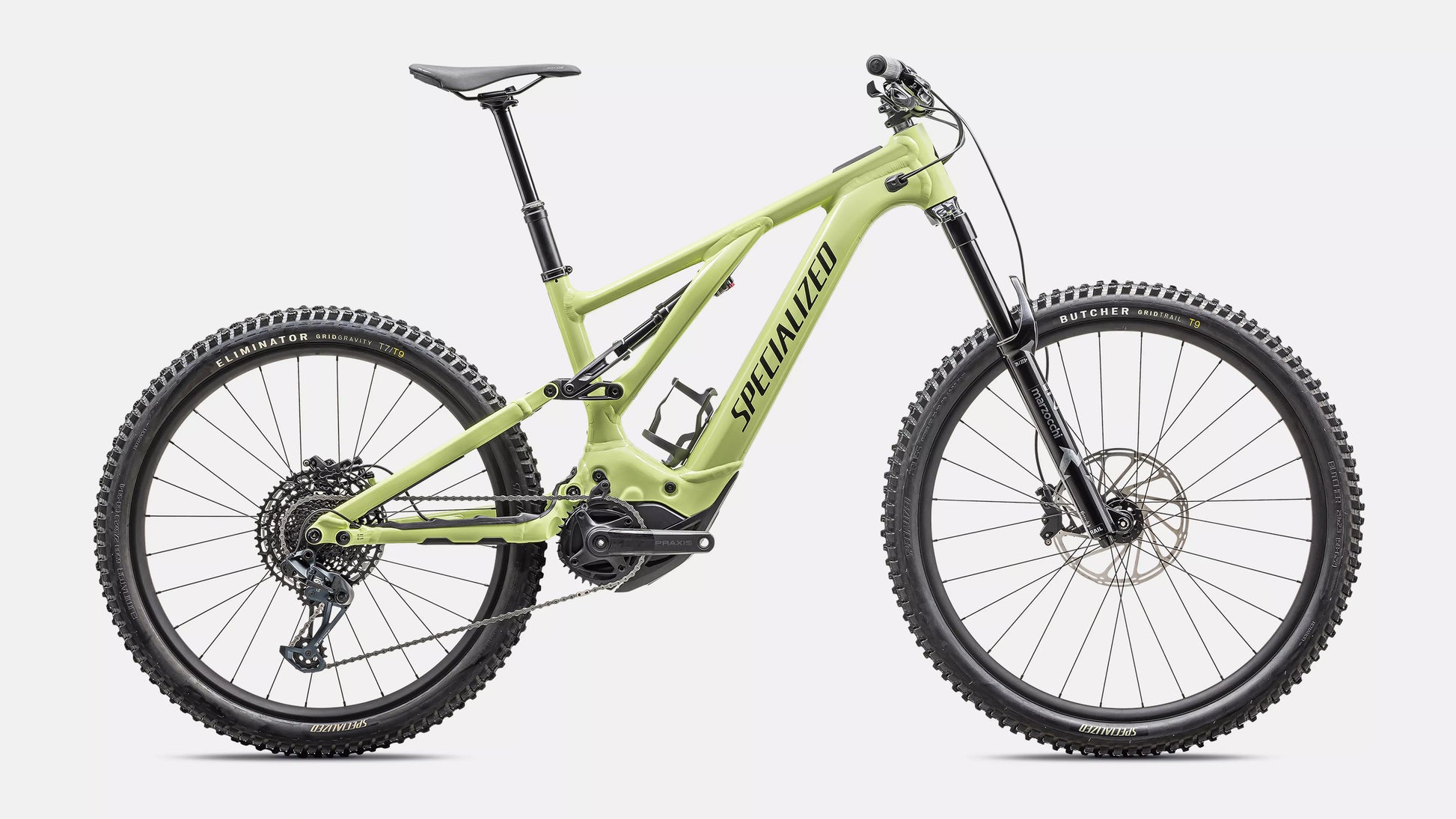

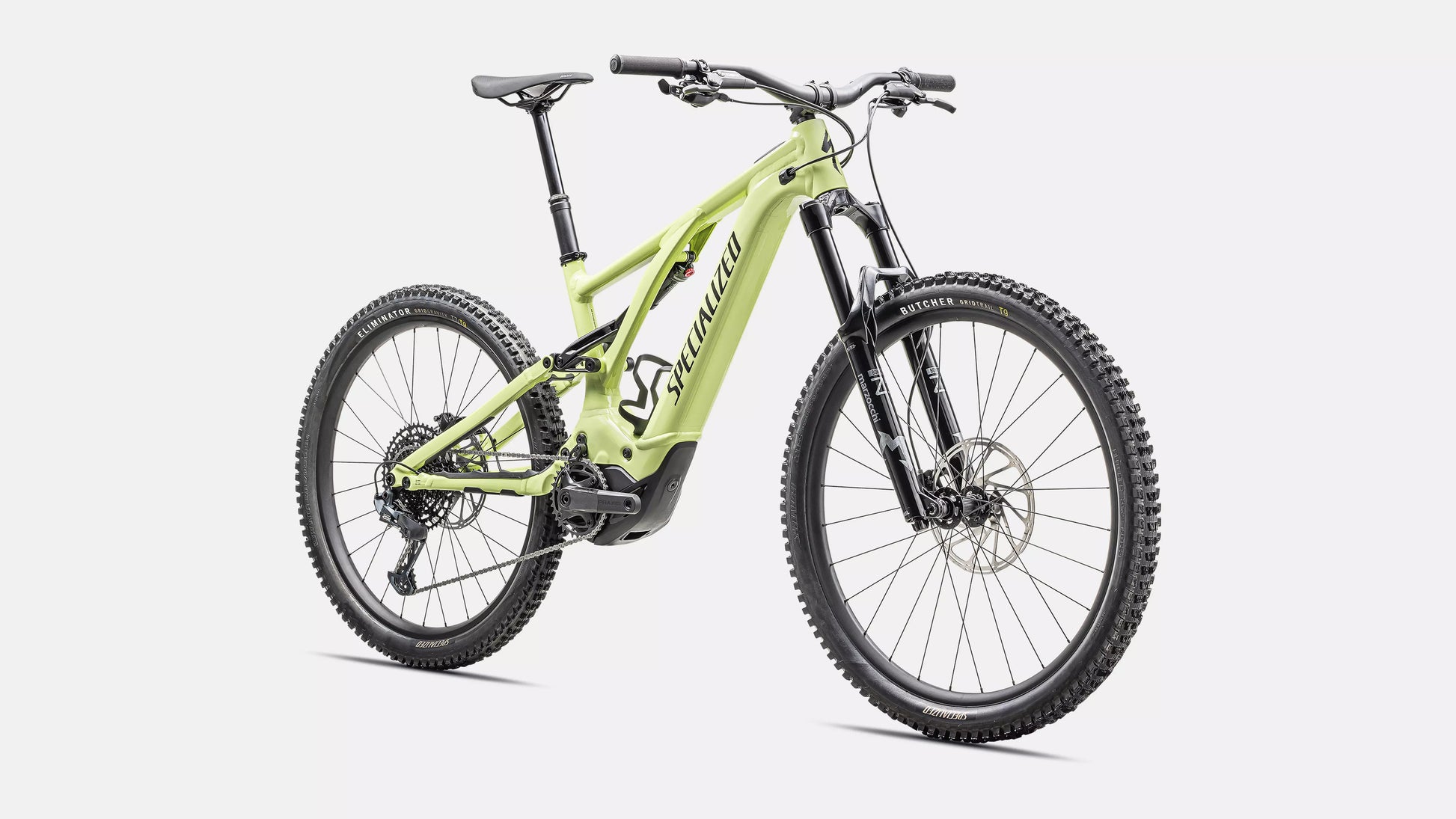

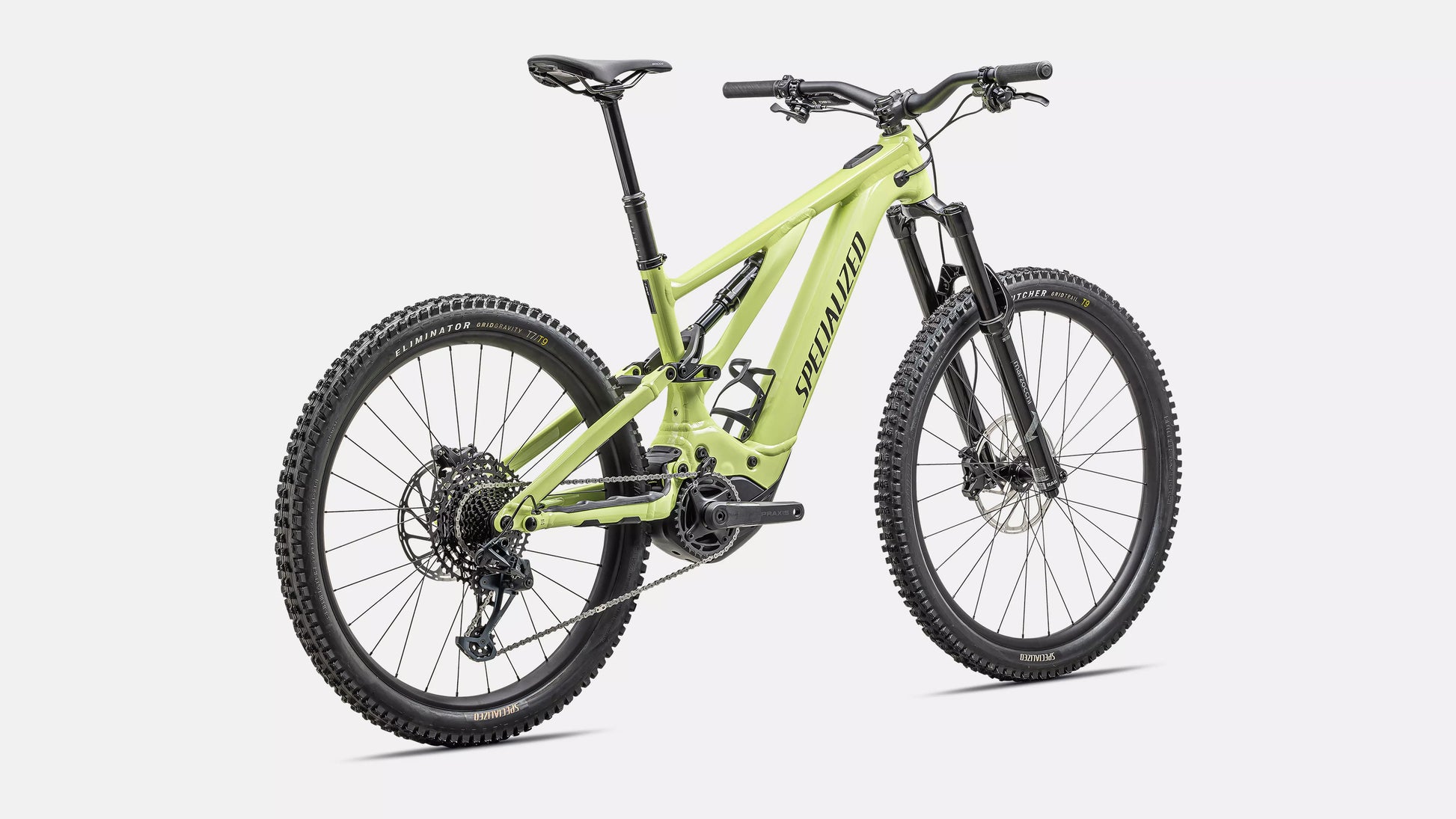

Turbo Levo 3 Alloy

Product Details

The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x your power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. The optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM NX/GX drivetrain, trail-taming Marzocchi suspension, and a lightweight, durable alloy wheelset, the Turbo Levo delivers more of everything that you love about trail riding.

Technical Specifications

E-Bike

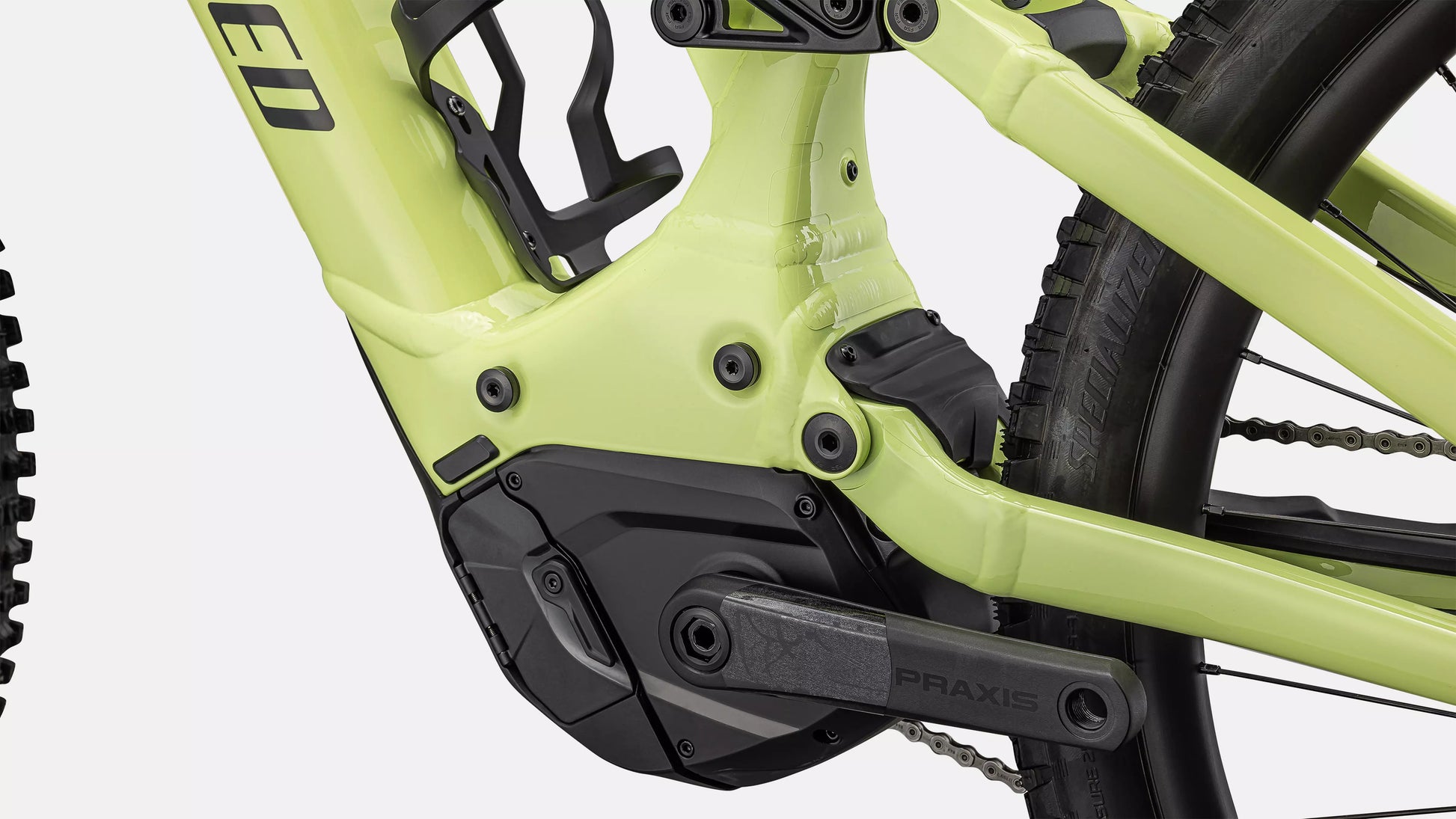

Motor
Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power

Battery
Specialized M3-700, Integrated battery, 700Wh

UI/Remote

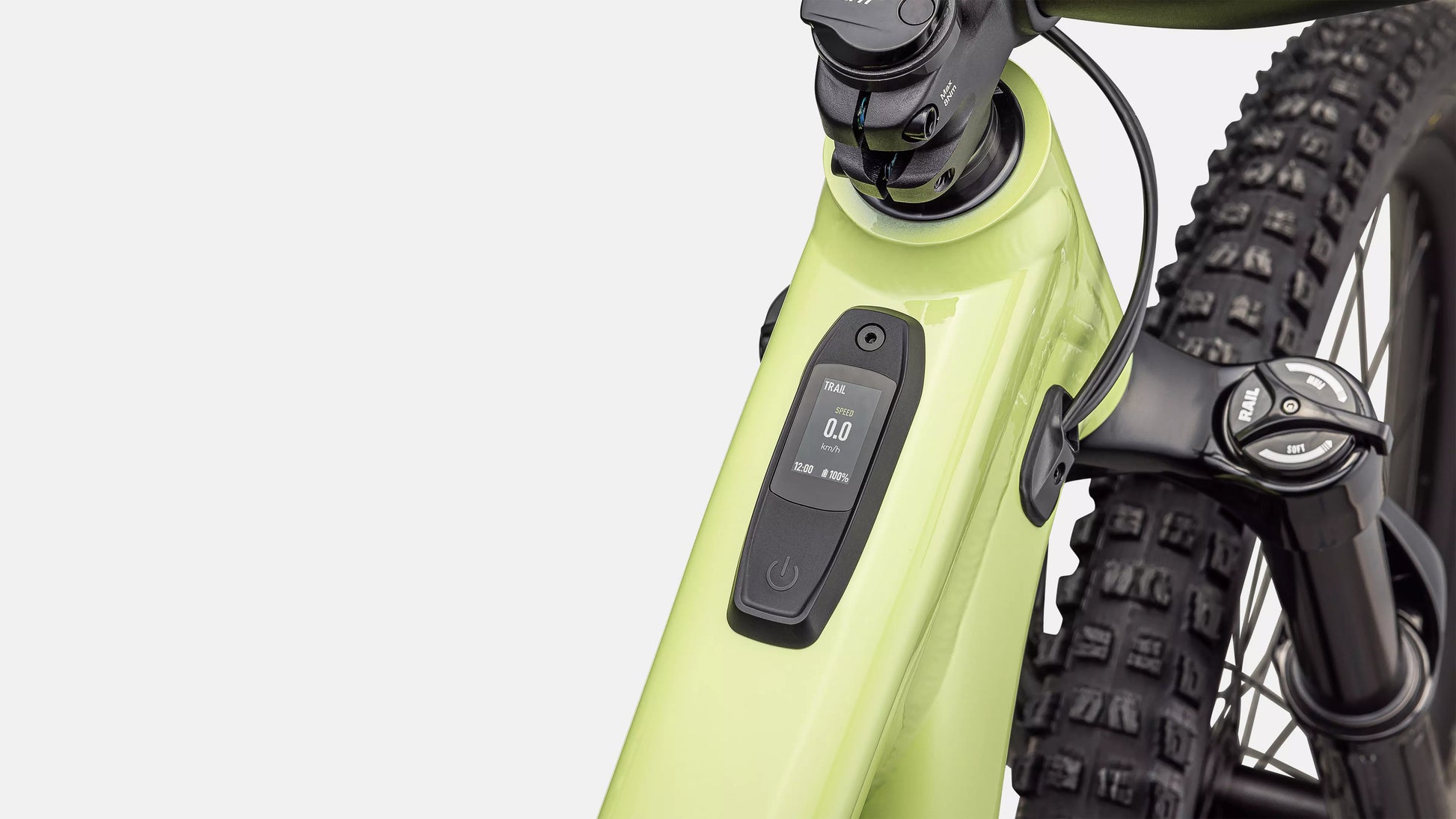

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, with handlebar remote

Charger
Custom charger, 42V4A with Rosenberger plug, 100–240V

Wiring Harness
Custom Specialized wiring harness

Frameset

Frame
Specialized M5 Premium Alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing

Seat Binder
Alloy, 38.6mm

Suspension

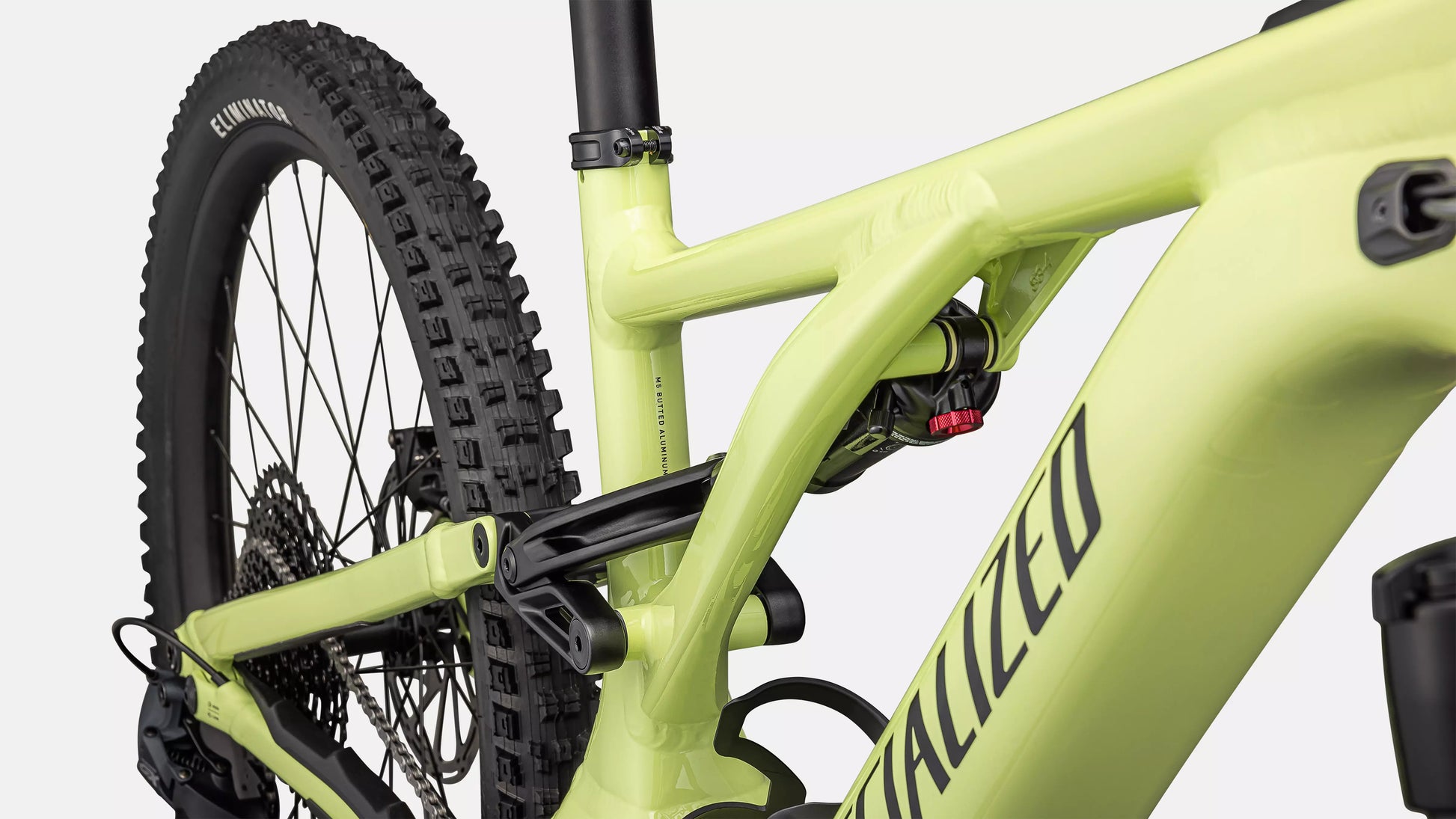

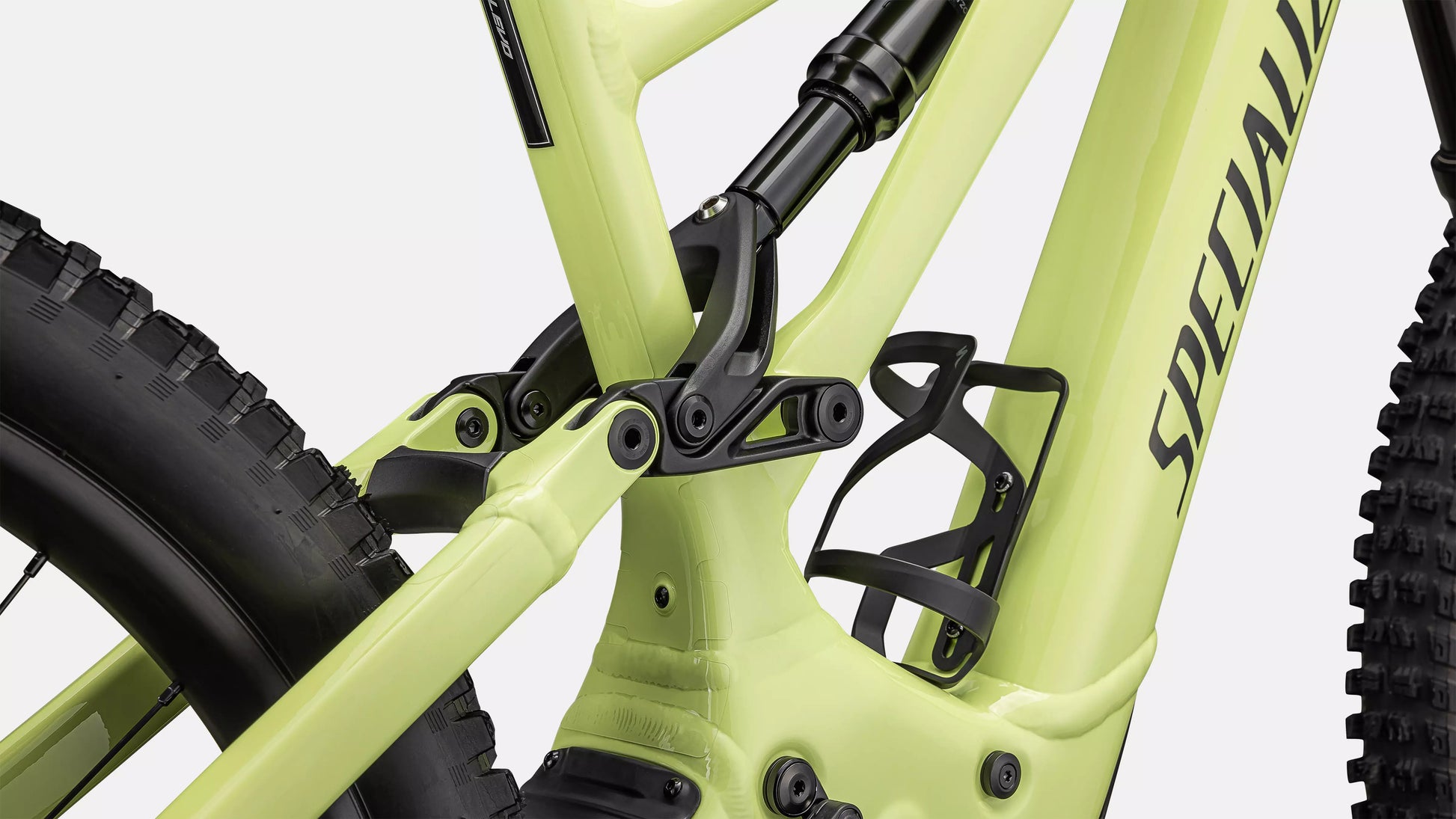

Rear Shock
Marzocchi Bomber Inline, S2-S6: 210x55mm, S1: 210x52.5mm, low-speed rebound adjustment

Fork
Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep-adjust compression

Brakes

Front Brake
SRAM DB8, 220mm rotor

Rear Brake
SRAM DB8, 200mm rotor

Drivetrain

Shift Levers
SRAM NX Eagle, single-click lever

Rear Derailleur
SRAM GX Eagle, 12-speed

Cassette
SRAM NX Eagle, 12-speed, 11-50T

Chain
SRAM NX Eagle, 12-speed

Crankset
Praxis Forged M30, custom offset, 160mm

Chainrings
SRAM X-Sync Eagle, 104 BCD, 32T, steel

Wheels & Tires

Rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub
Alloy, sealed cartridge bearings, 148x12mm thru-axle, 28h

Spokes
DT Swiss Industry

Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"

Inner Tubes
Standard 40mm PV 29/27.5x1.75–2.4

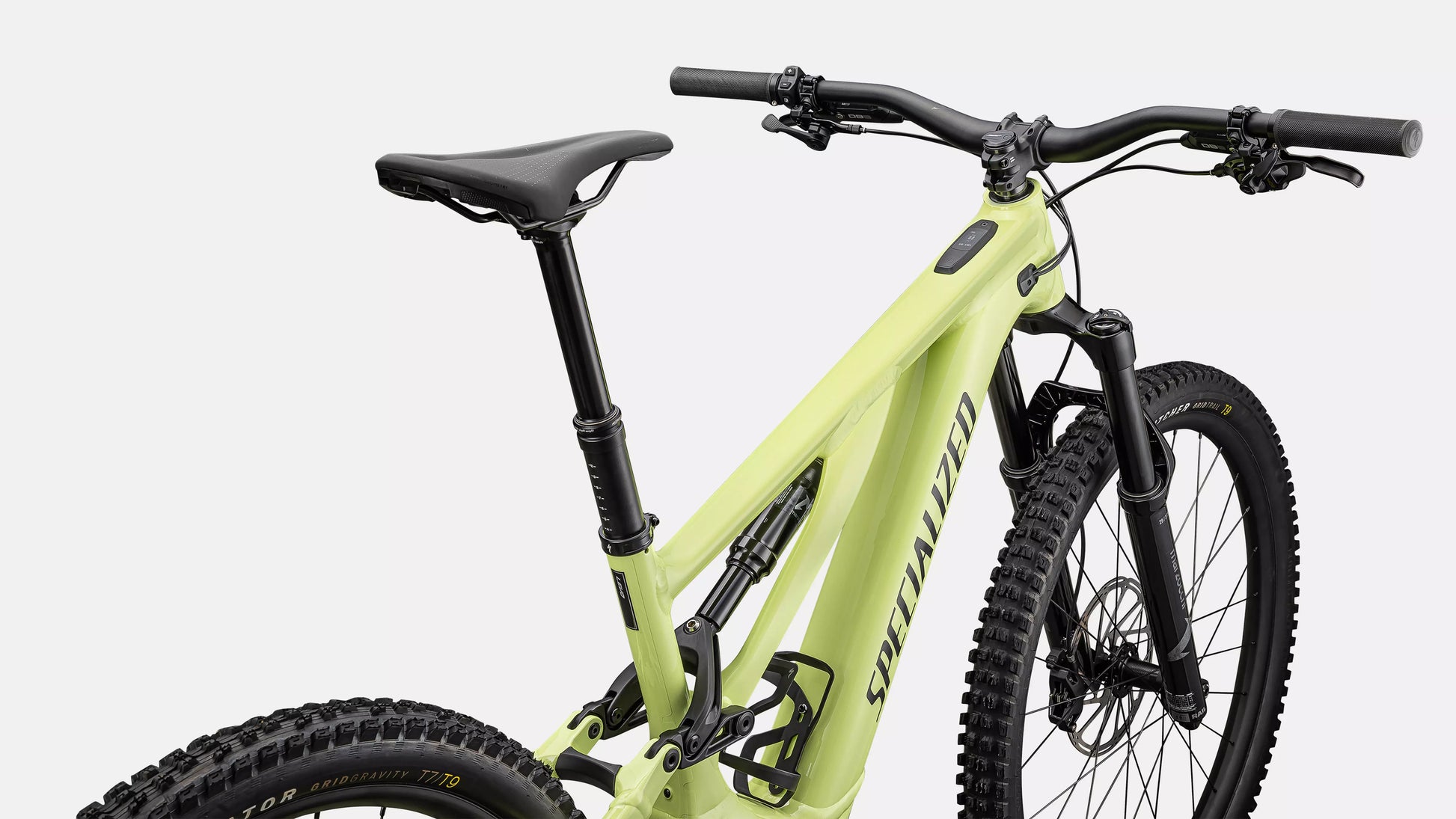

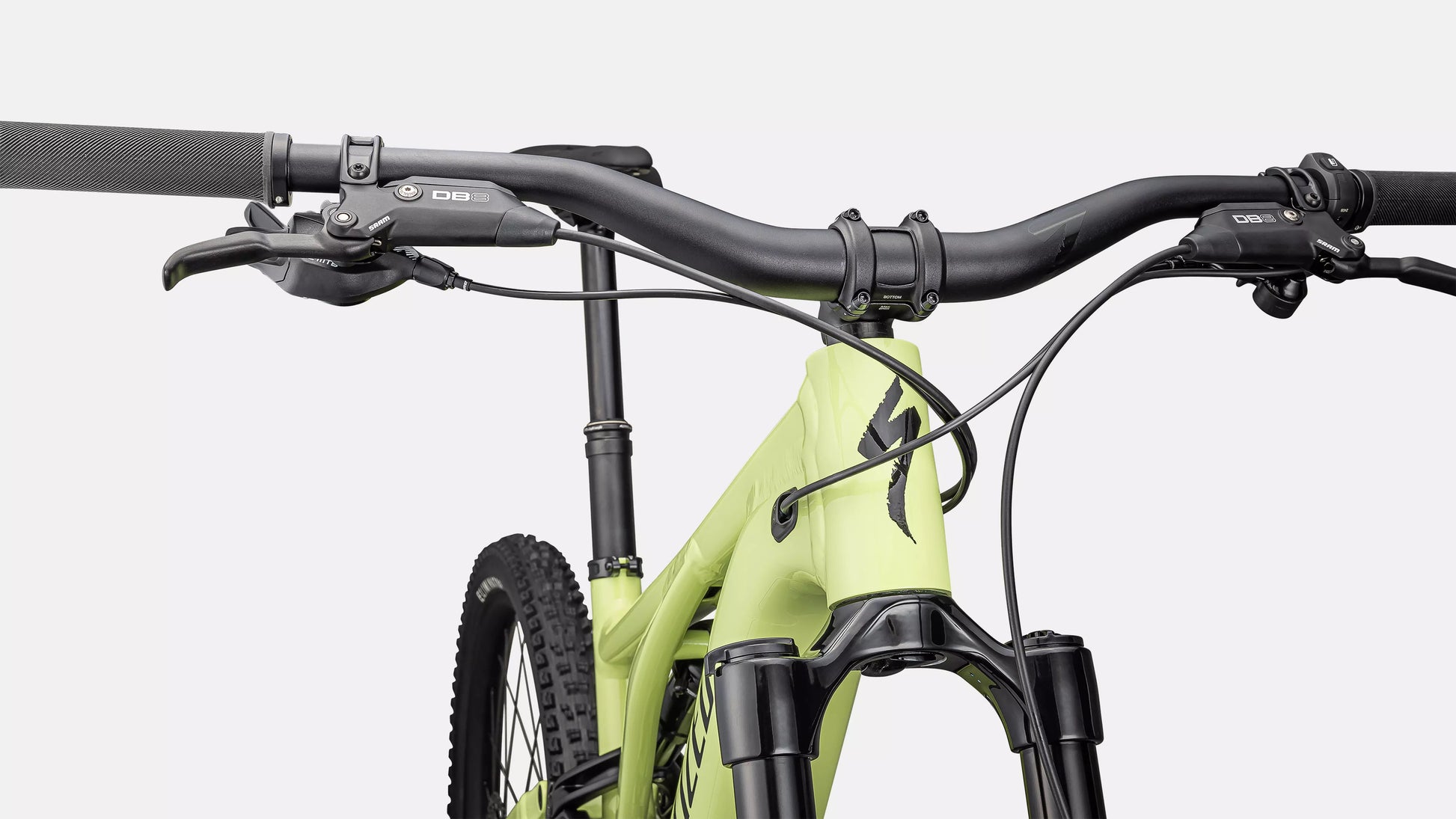

Cockpit

Stem
Alloy Trail Stem, 35mm bar bore

Handlebars
6061 mountain bars, 35mm diameter, 8° backsweep, 6° upsweep, 800mm width. S1/S2: 30mm rise. S3-S6: 40mm rise

Grips
Specialized Trail Grips

Saddle
Body Geometry Bridge Saddle, steel rails

Seatpost
TranzX dropper, 34.9mm. S1: 100mm, S2: 125mm, S3: 150mm, S4-S5: 170mm, S6: 200mm

Accessories

SWAT
SWAT CC steerer tube integrated tool with chain tool and quick link

Product Details

Product ID
231082

Weight

Weight
24.21kg (53 lb, 6 oz)

Weight Size
S4
